Bonding, Structure, and Resonance

By James Ashenhurst

Sigma bonds come in six varieties: Pi bonds come in one

Last updated: January 8th, 2025 |

You may recall from Gen chem (and no doubt your first week of o-chem as well), that orbitals on carbon come in two flavors: s and p.

s orbitals should be familiar as the spherical-shaped orbitals. The electrons of hydrogen, for instance, are in a 1s orbital.

p orbitals are shaped like figure-eights, or loops. The electrons in p orbitals are slightly farther away from the nucleus than those in s orbitals, so they are a little bit higher in energy. The p orbitals therefore fill with electrons only after the s orbitals are filled.

Hybridization is a concept that  we address here.

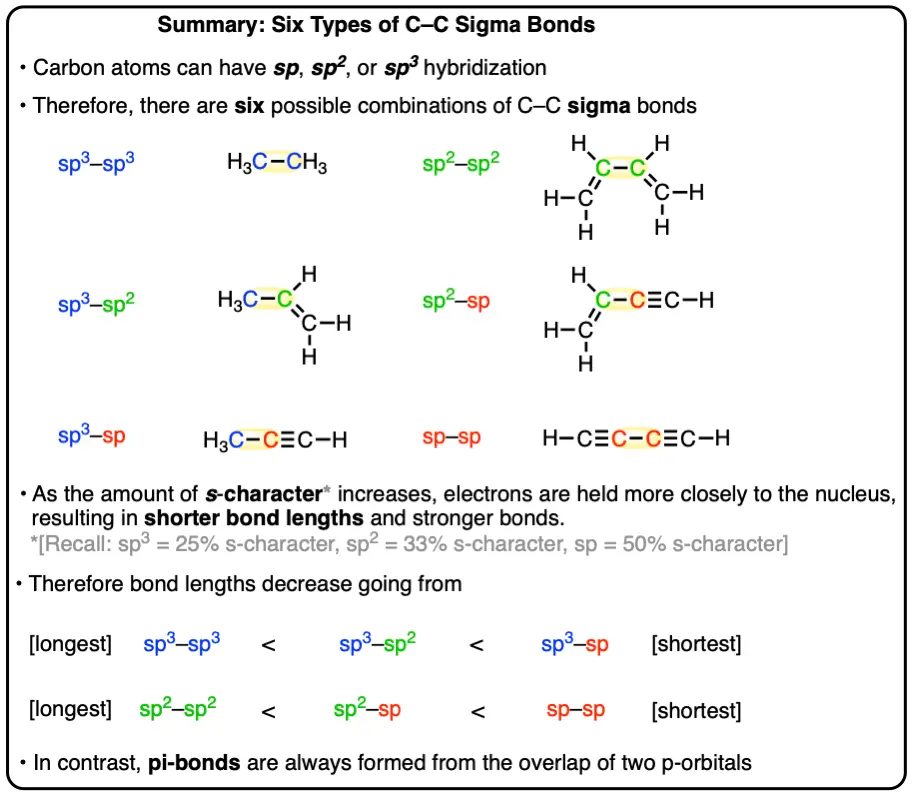

summary-sigma bond varities sp3 sp3 vs sp3 sp2 vs sp3 sp bond strength increases with s orbital character

What’s observed from analyzing the structure of molecules such as CH4 is that the shapes cannot result from the electrons being in s or p orbitals alone, but instead are a consequence of the electrons in s and p orbitals mixing to form hybrid orbitals. If you draw an analogy to how we could make a “hybrid” soft drink by  mixing different proportions of Sprite and Pepsi, these new orbitals aren’t fully s or fully p, but are a combination of both. The “flavor” of each bond depends on the relative proportions of s orbital and p orbital content:

  • sp3 = 25% s character, 75% p character
  • sp2 = 33% s character, 66% p character
  • sp = 50% s character, 50% p character.

It is these hybrid orbitals that form sigma bonds (σ bonds). Sigma bonds are created from the head-on overlap of orbitals. Those orbitals will be some combination of s orbitals and p orbitals.

[What’s happened to the missing p orbitals for sp2 and sp hybridized carbon? Well, these p orbitals aren’t involved in hybridization or in  sigma bonding –  instead, they maintain 100% p character,  are available to form π bonds, which are created by the side-by-side overlap of orbitals. π bonding involves p orbitals exclusively. ]

Since carbon can exist in one of these three hybridization states, we can therefore have six varieties of carbon-carbon sigma bonds:

six-types-of-carbon-carbon-sigma-bonds-sp3-sp3-sp3-sp-sp-sp2-sp3-sp2-sp2-sp2-sp-sp-vary-by-strength

Now, recall that for any given quantum number, s orbitals are lower in energy than p orbitals. The electrons in s orbitals are held more closely to the nucleus than electrons in p orbitals. Take a look at the relative carbon-carbon bond lengths and strengths for each of these six situations [Ref].

representative bond lengths of sp3 sp3 154 pm sp3 sp2 150 pm sp3 sp 146 pm 2

General principle – the more s character the bond has, the more tightly held the electrons will be. [Note 1]

Now, the number of π bonds that can form will be dependent on the number of unhybridized p orbitals available – 1 for sp2 hybridized carbons, 2 for sp hybridized carbons (the two π bonds will be at right angles to each other in the latter case).

In contrast to sigma orbitals, there is only one way to form a C-C π bond – from the overlap of two p orbitals.

Question:  Relative to sigma bonds, do you think p-p bonds (π bonds) would be stronger or weaker?

1) What’s their % s-character?

2) Energy required to break C-C bond in ethane:  88 kcal/mol (368 kJ/mol)

Energy required to fully break apart the C=C bond in ethene: 163 kcal/mol (682 kJ/mol) . If you assume the C–C bond single bond is the same as in ethane (88 kcal/mol) this gives a bond dissociation energy for the C-C pi bond as 75 kcal/mol.

Notes

Related Articles

Note 1. This is also why the protons in acetylene are more acidic than those in ethene and ethane – the electrons in the conjugate base are more tightly held, making them more stable. If it seems contradictory that the bond is both stronger and yet more easily broken, remember that bond energies measure homolytic cleavage (See article: Bond Energies Measure Homolytic Cleavage)

(Advanced) References And Further Reading

  1. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. Allen, F. H.; Kennard, O.; Watson, D. G. ; Brammer, L.; Orpen, A. G.; Taylor, R. J. Chem. Soc., Perkin Trans. 2, 1987, S1-S19
    DOI: 10.1039/P298700000S1
    A useful reference, this paper collects bond lengths of various organic compounds determined from X-ray crystal diffraction data.

00 General Chemistry Review
01 Bonding, Structure, and Resonance
02 Acid Base Reactions
03 Alkanes and Nomenclature
04 Conformations and Cycloalkanes
05 A Primer On Organic Reactions
06 Free Radical Reactions
07 Stereochemistry and Chirality
08 Substitution Reactions
09 Elimination Reactions
10 Rearrangements
11 SN1/SN2/E1/E2 Decision
12 Alkene Reactions
13 Alkyne Reactions
14 Alcohols, Epoxides and Ethers
15 Organometallics
16 Spectroscopy
17 Dienes and MO Theory
18 Aromaticity
19 Reactions of Aromatic Molecules
20 Aldehydes and Ketones
21 Carboxylic Acid Derivatives
22 Enols and Enolates
23 Amines
24 Carbohydrates
25 Fun and Miscellaneous
26 Organic Chemistry Tips and Tricks
27 Case Studies of Successful O-Chem Students

Comments

Comment section

25 thoughts on “Sigma bonds come in six varieties: Pi bonds come in one”

  1. Pingback: Sigma bonds come in six varieties: Pi bonds come in one | Straight A Mindset
  2. Pingback: Orbital Hybridization And Bond Strengths | Straight A Mindset

  3. I am a bit confused by the representative bond length table, as it is listed in almost increasing bond length with the exception of the swap of sp-sp3 and sp2-sp2. Although the different is only 1pm I presume there are other factors affecting the bond length between 2 specific elements, hence the “representative bond length table”. Given 2 arbitrary elements that can take the either the sp, sp2, sp3 hybridization will the ranking of their bond lengths always follow table’s representative bond lengths?

    The reason I ask this is Quiz #679 as the ranking of the bond lengths would follow this table if it were in order, neglecting the actual numerical values, otherwise would the solution not be incorrect?

    Reply

    1. The key is to keep one variable constant while the other changes.

      For example in the first 3 cases, one side is sp3, while the other side goes from sp3 to sp2 to sp. With increasing s-character we should expect (and we do see) a strengthening of the bond as shown by the decreasing bond length.

      For the next two examples we are keeping the right-hand side constant (sp2) while increasing the s-character of the left hand side (sp2 to sp) and we again see a decrease.

      It would be unfair to be asked to guess whether sp3-sp is stronger/shorter than sp2-sp2 because we are changing both sides at the same time and it is difficult to predict the outcome.

      A fair question would instead keep one side constant and change the other side in a linear fashion.

      Reply

  9. Quiet clear.. ..But could you please tell the reason why sp3 bond length are greater than sp2 and sp

    Reply

    1. More s-character means the electrons are held tighter to the nucleus, which means a shorter bond length. In an sp-hybridized C-H bond the electrons have 50% s-character and will be held closer to the nucleus than in sp2 C-H (33%) and sp3 C-H (25%).

      Reply

    1. The bond dissociation energy of a C-C single bond is generally about 80 kcal/mol. The bond dissociation of a C-C pi bond is generally about 60 kcal/mol. The pi bond is weaker than the sigma bond.

      Reply

    1. Hi Alina – “s” character refers to hybrid orbitals. An sp3 hybrid orbital is made of 1 s orbital and 3 p orbitals, so it has 25% s character and 75% p character.
      An sp2 hybrid orbital is made of one s orbital and 2 p orbitals so it has 33% s character and 66% p character.
      An sp hybrid orbital is made from 1 s orbital and 1 p orbital so it has 50% s character and 50% p character.

      Reply

  15. Thank you, that was really helpful. Could you explain the diplole moment, its calculation, bent, linear shape, trigonal, and tetrahedral shape effect on dipole moment. Also, could please an example lets say why does Acetonitrile is more polar than Methanol? From electronegativity perspective, Oxygen has a higher electronegativity than Nitrogen but why in case of Acentonitrile it’s having higher electronegativity than Methanol? Does the triple bond has an effect due shortness of its bond compared to single bond?

    Thank you ver much

    Reply
