Bonding, Structure, and Resonance

By James Ashenhurst

Evaluating Resonance Structures With Positive Charge

Last updated: December 28th, 2022 |

Resonance Structures With Positive Charge: Four Key Principles

As I mentioned before, the resonance form(s) of lowest energy are those where the charges are minimized. However, sometimes you can’t get around it: you have to put a charge somewhere. Last time I talked about the principles involved in deciding where best to put a negative charge: on the least basic atom. Today I’ll talk about the opposite situation: where to put a positive charge.

Table of Contents

  1. Electron-Deficient Atoms Are Stabilized By Electron-Rich Neighbors
  2. Positive Formal Charges On Oxygen Or Nitrogen Are OK So Long As It Has A Full Octet
  3. When Placing Positive Charges On  Carbon, The Resonance Form Where The Positive Charge Is On The Most Substituted Carbon Will Be The Most Important
  4. Carbocations Are Destabilized By Adjacent Electron Withdrawing Groups That Lack Lone Pairs (Such As CF3, NR3+, And C=O)
  5. Notes

1. Electron-Deficient Atoms Are Stabilized By Electron-Rich Neighbors

There are really one main principle to think about when deciding which site will stabilize positive charge the best. Recall the one sentence summary of chemistry: opposite charges attract, like charges repel.

  • Electron-poor atoms are stabilized by adjacent electron-rich atoms.
  • Electron poor atoms are destabilized by adjacent electron-poor atoms.

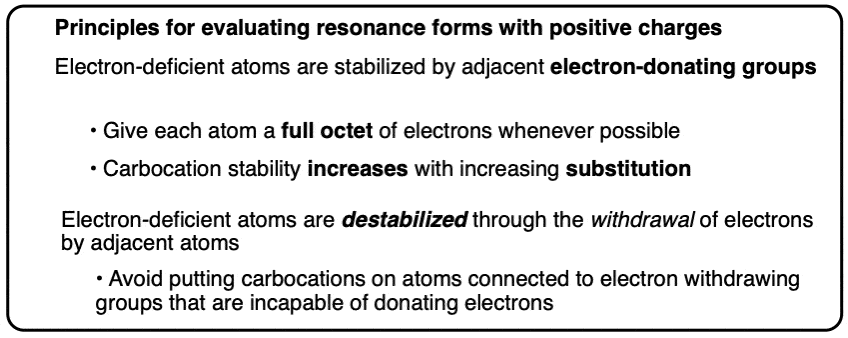

To be more specific, there are three main ways this plays out when evaluating resonance structures.

evaluating-resonance-forms-with-positive-charges-principles-give-atom-full-octet-when-possible-then-carbocation-stability-trends-come-second

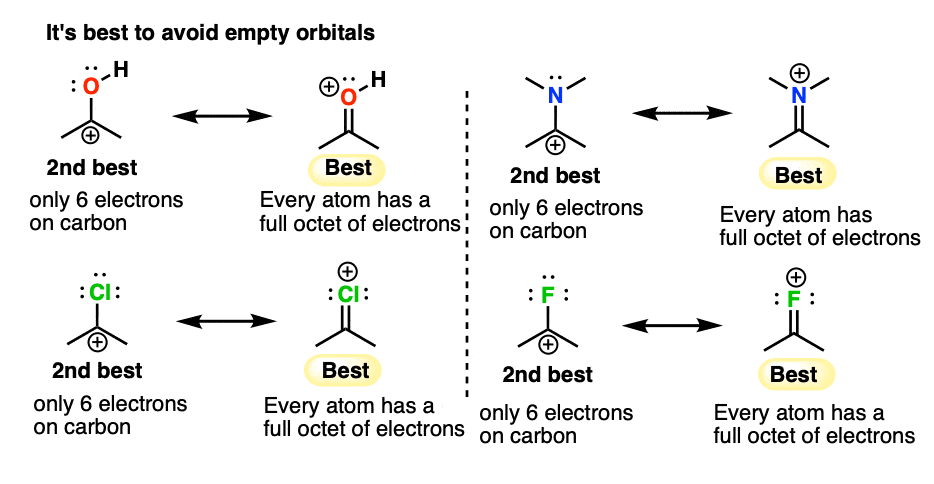

It’s probably this first principle which causes the most confusion of all. Let’s look at the “best” and “second-best” resonance forms for these positively charged species.

Notice how in each one, the second-best resonance form has a carbocation – that is, a carbon with six valence electrons.

The best resonance form has a new π bond that has been formed through the donation of a pair of electrons on the adjacent atom (O, N, Cl, F). In the process we put a positive charge on that atom.

determine-importance-of-resonance-forms-promote-full-octets-when-possible-always-more-stable-than-empty-octets

2. Positive Formal Charges On Oxygen Or Nitrogen Are OK So Long As It Has A Full Octet

Why is this weird? Because up to this point, you’re probably used to thinking of atoms like F,  O, Cl, and N as the “electron Scrooges” of the periodic table. Due to their high electronegativity they take electrons away from whatever they’re attached to.

Here’s an important new concept: When atoms with a lone pair are adjacent to an atom with an empty orbital, formation of a π bond will be favored. Remember that formation of a chemical bond is an energy-lowering event. The “loss” of a full lone pair on the donating atom is more than compensated for by the energy released through formation of a new π bond to the empty orbital.

We call this π donation. It’s such an important concept there will be much more to say about it in a subsequent post, but if you want to anthropomorphize matters here, you can compare F, O, N and Cl to  famous Scrooges such as John D. Rockefeller, Andrew Carnegie, and even Bill Gates:  while they may have been thought of as greedy, they also have a philanthropic side.

Just one thing to note: although it might look “bad” to put a positive charge on electronegative atoms such as O, N, Cl, and F,  this is fine in these cases because if you look closely there is a full octet of electrons on each of these atoms. Recall that the “positive charge” we draw is actually formal charge, and remember that formal charge does not always reflect electron density So in these cases these atoms are not actually electron-deficient.

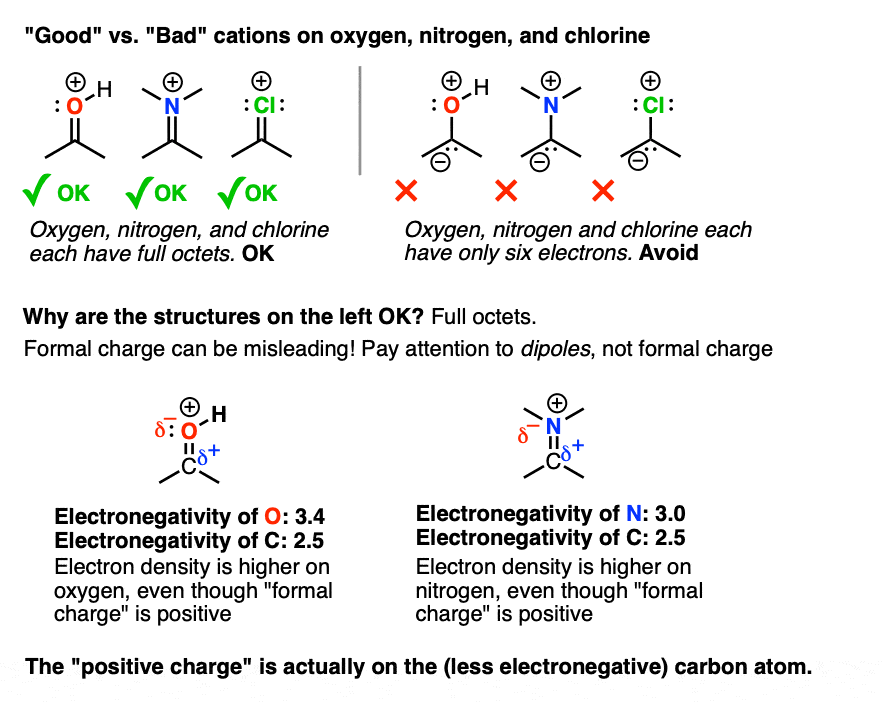

However it’s important to distinguish between these types of positively charged atoms, and those in the diagram below which lack a full octet. It is extremely energetically unfavorable for atoms like F, O, and N to have less than a full octet of electrons.  Avoid!

good-versus-bad-positive-charges-on-oxygen-nitrogen-and-chlorine-as-long-as-they-have-full-octet-positive-formal-charge-is-stable-oxygen-with-six-electrons-is-very-unstabl

3. When Placing Positive Charges On  Carbon, The Resonance Form Where The Positive Charge Is On The Most Substituted Carbon Will Be The Most Important

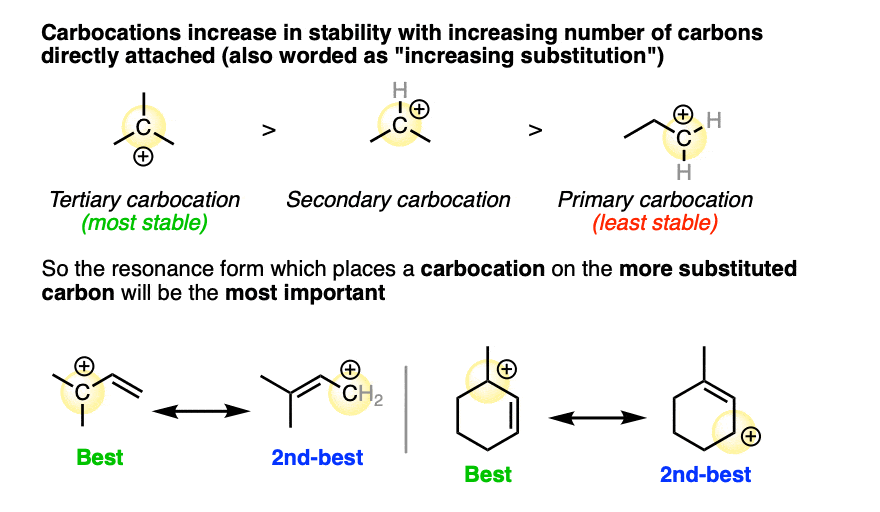

Here comes the second most important principle when it comes to stabilizing positive charge: if possible, it is best to place the positive charge on the most substituted carbon atom. As I often say to my students, “if you’re poor, it helps to have rich neighbors”. The stability of carbocations increases with the number of attached alkyl groups. It might be useful to review the 3 factors that stabilize carbocations.

carbocations-increase-in-stability-as-number-of-attached-carbons-increases-tertiary-secondary-primary

4. Carbocations Are Destabilized By Adjacent Electron Withdrawing Groups That Lack Lone Pairs (Such As CF3, NR3+, And C=O)

The last factor to keep in mind is essentially the inverse of what we just discussed. Carbocations are destabilized when adjacent to electron-withdrawing groups. Now it’s important to add the caveat – electron withdrawing groups that cannot donate a lone pair.

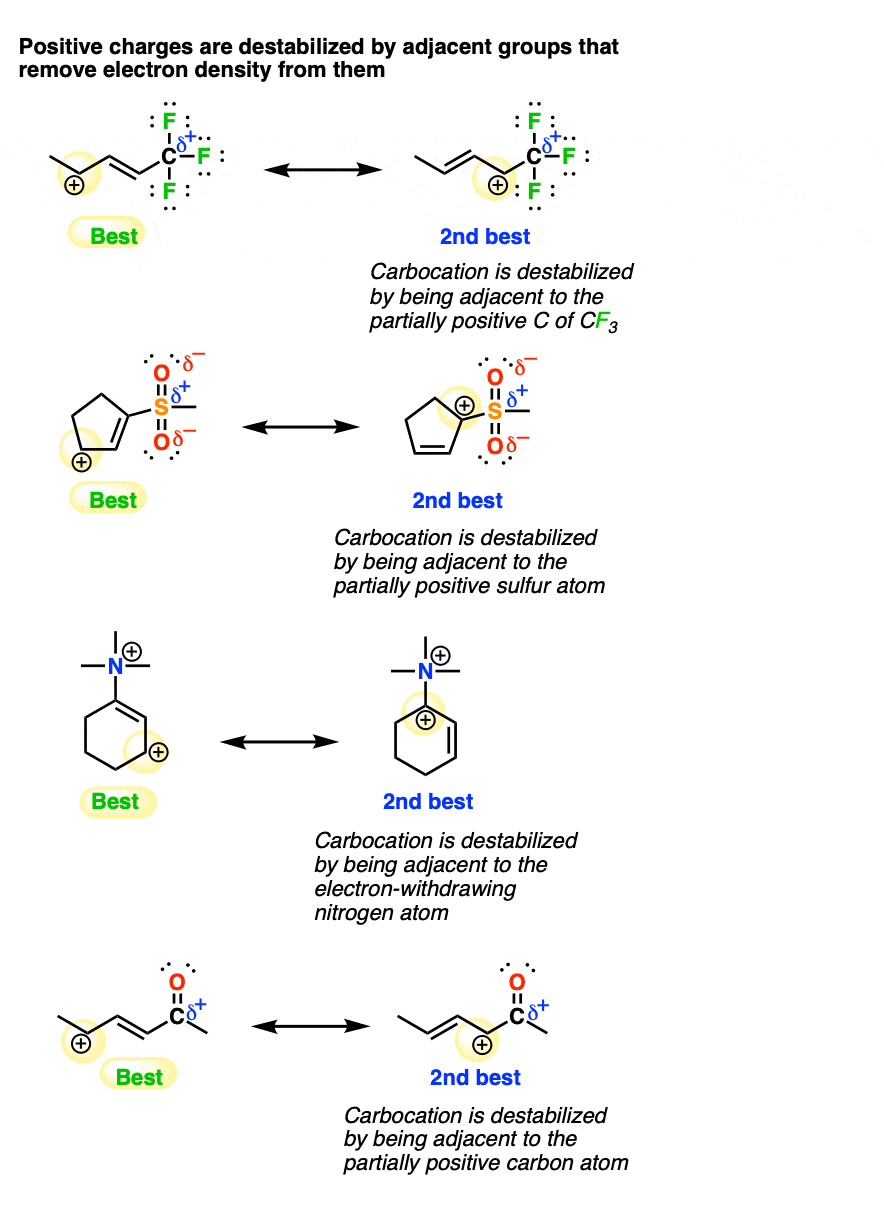

So we can put groups such as CF3, NR3,(+) COOR, COOH, SO3H, NO2, and others in this category. Let’s have a look.

Note that in each case the carbocation is attached to a group which is removing electron density from it *without* being able to donate a lone pair of electrons.

carbocations-increase-in-stability-as-number-of-attached-carbons-increases-tertiary-secondary-primary

So hopefully that (mostly) covers an introduction to evaluating the stability of different resonance forms. In the next few posts, we’ll start to look at how to apply resonance to find the reactive sites on a molecule.

Next Post: Applying Resonance (1): Pi-donation
