Hydration and Oxymercuration of Alkynes

Last updated: January 23rd, 2024 |

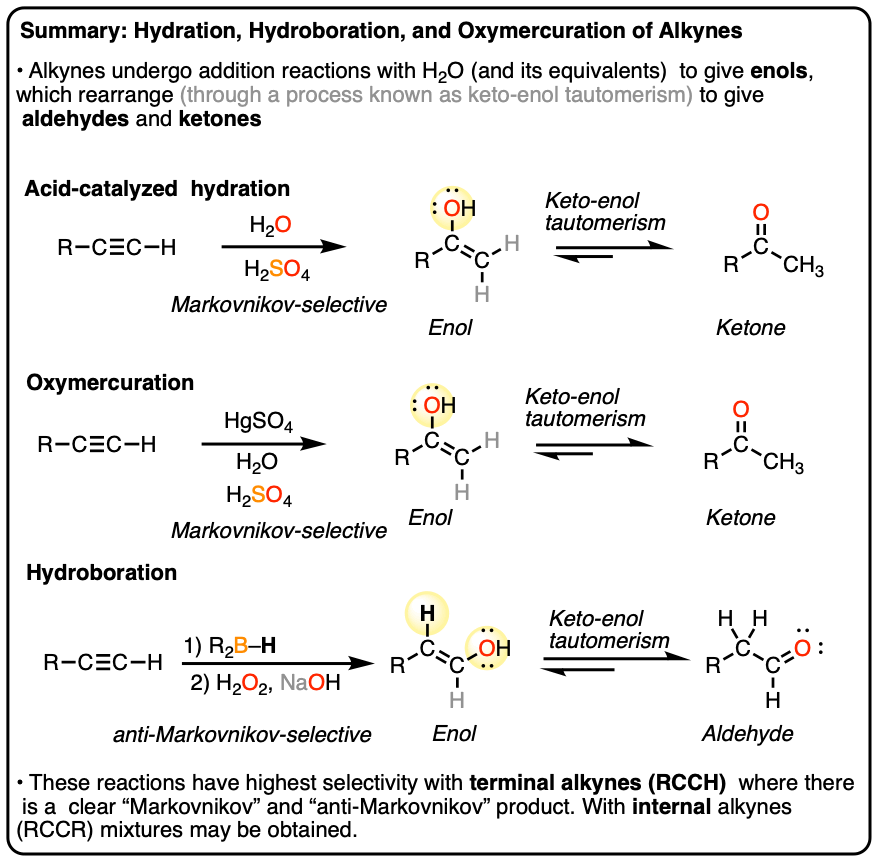

Hydration and Oxymercuration of Alkynes Via Keto-Enol Tautomerism

Alkyne chemistry bears many resemblances to alkene chemistry, but in these first few posts on the subject, the purpose is to illustrate how one seemingly minor change – an extra π bond – can lead to significant differences in chemical behavior.

Previously, we saw that the sp hybridization of alkynes leads to increased acidity, and the second π bond of alkynes leads to the possibility for partial reduction to either cis or trans alkenes. In this post we’ll see again how the addition of that extra π bond has a very important and surprising consequence.

Table of Contents

  1. Hydration of Alkenes With Aqueous Acid Gives Alcohols
  2. Hydration of Alkynes With Aqueous Acid Gives… Ketones??… What?!
  3. The First Step In The Hydration of Alkynes Is Formation Of An “Enol”
  4. The “Enol” Is Converted To A Ketone Through A Process Called “Tautomerization”
  5. Alkynes Can Also Be “Hydrated” via Oxymercuration (HgSO4/H2O)
  6. Hydroboration Of Alkynes (R2BH) Occurs With Anti-Markovnikov Selectivity, Giving Aldehydes From Terminal Alkynes
  7. Beware: Depending On The Alkyne, Mixtures Of Products Can Be Obtained
  8. Notes
  9. (Advanced) References and Further Reading

1. Hydration of Alkenes Gives Alcohols

Several posts ago we talked about the hydration of alkenes. This can be done either with aqueous acid, or with mercury and water (“oxymercuration” – more on that later). Looking at the reaction with alkenes, the pattern is fairly straightforward: break a C-C π bond, and form a C-H and C-OH bond. Also recall that the oxygen ends up on the most substituted carbon [“Markovnikov” selectivity].

hydration of alkenes with mercury oxymercuration and water gives markovnikov alcohols with no rearrangement

2. Hydration of Alkynes With Aqueous Acid Gives… Ketones??… What?!

So what happens when we try this reaction on alkynes? We might expect to observe the same pattern, right? After all, it’s just a simple addition reaction.

Well… here’s what we actually observe. We get… a ketone !?

hydration of alkynes with water and acid or with oxymercuration gives a ketone via an enol intermediate how does this happen

Now what’s going on here? This seems like the type of thing that drives new organic chemistry students around the bend. Just when you think you understand your surroundings, you pick up the most innocuous looking rock, and underneath it find a poisonous snake!

Don’t panic! It’s a new concept in organic chemistry we’ll be exploring here called tautomerism – one that gets much more discussion in Org 2, but it’s not as weird as you initially might think. (See post: Keto-Enol Tautomerism)

Look at the bonds formed and broken. The first set we should understand. Form C-O and form C-H, break C-C π.  It’s that next set of bonds formed/broken that are a big surprise.

3. The First Step In The Hydration of Alkynes Is Formation Of An “Enol”

If you monitor this reaction closely – one way to do it is in an NMR tube – it’s actually possible to observe the first product of this reaction, which is the one shown below. We call this an “enol”, by the way – kind of like a spork (half spoon half fork) it is part alkene, part alcohol. (See post: Reactions of Enols

first step in hydration of alkynes is formation of enol through attack of water on protonated alkyne break c c pi and form c o

4. The “Enol” Is Converted To A Ketone Through A Process Called “Tautomerization”

Over time, this enol spontaneously converts into the ketone. Note that the two have the same molecular formula – they are constitutional isomers.  And they are in equilibrium with each other.

We call these constitutional isomers which interconvert, “tautomers”. This equilibrium generally favors formation of the ketone due to the strong C-O π bond (compared to C-C π).

step 2 of conversion of alkyne to ketone is enol to ketone through tautomerism equilibrium favors ketone due to stronger c o bonds

Here’s how the whole process works – arrow by arrow.

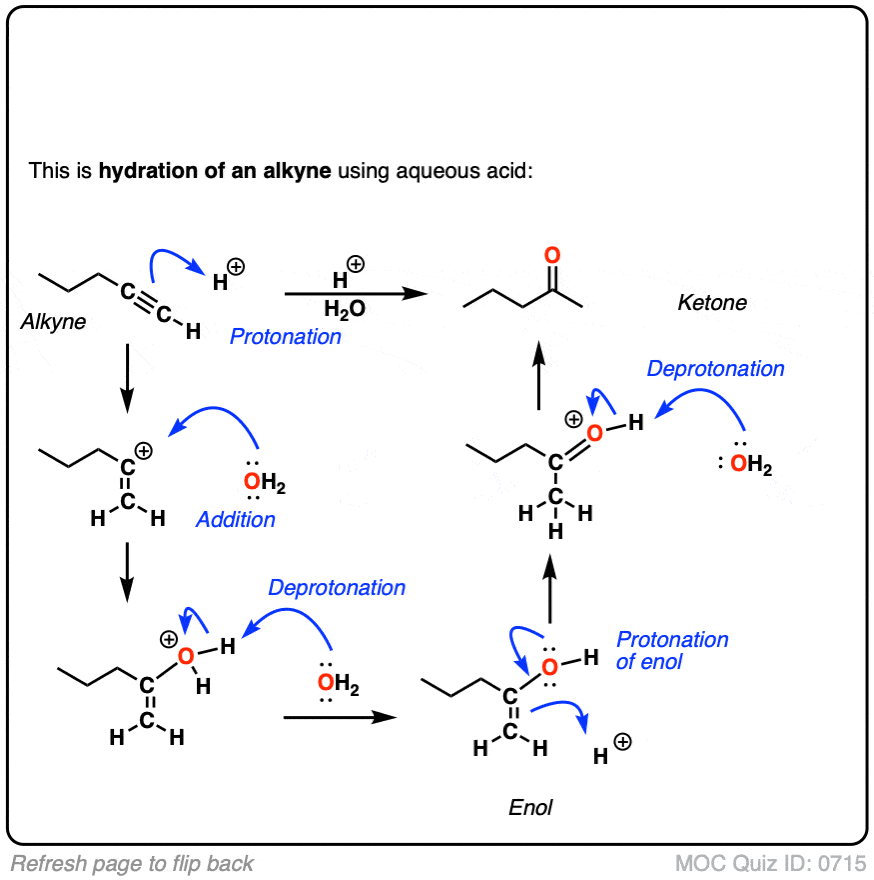

mechanism for hydration of alkyne with acid and water proceding through vinyl carbocation then enol and then tautomerization to give ketone markovnikov

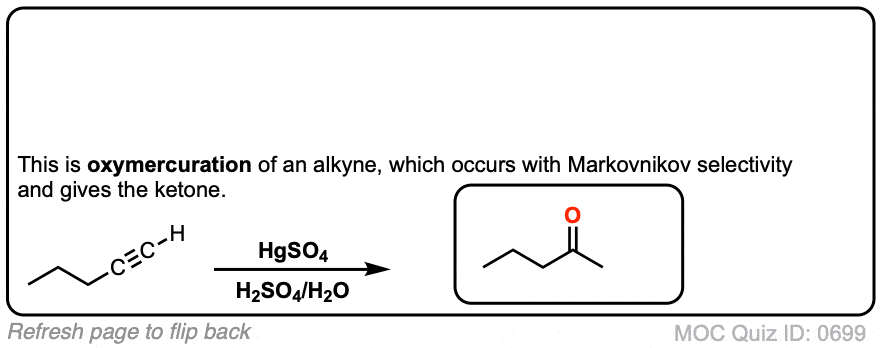

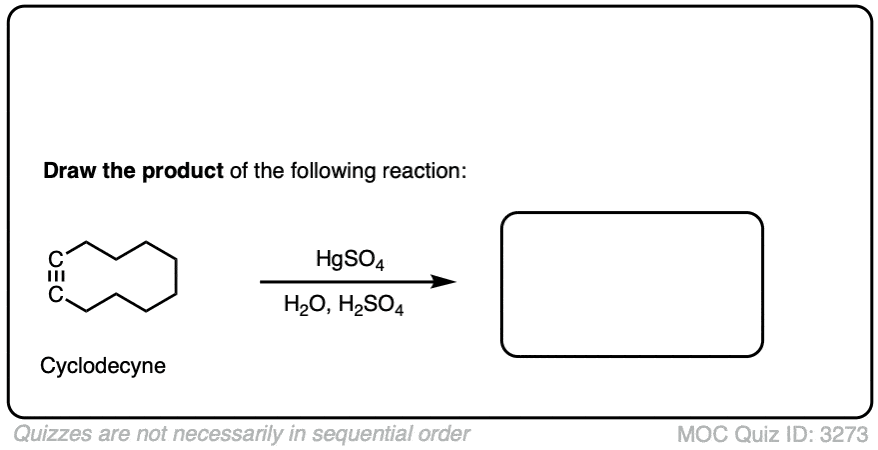

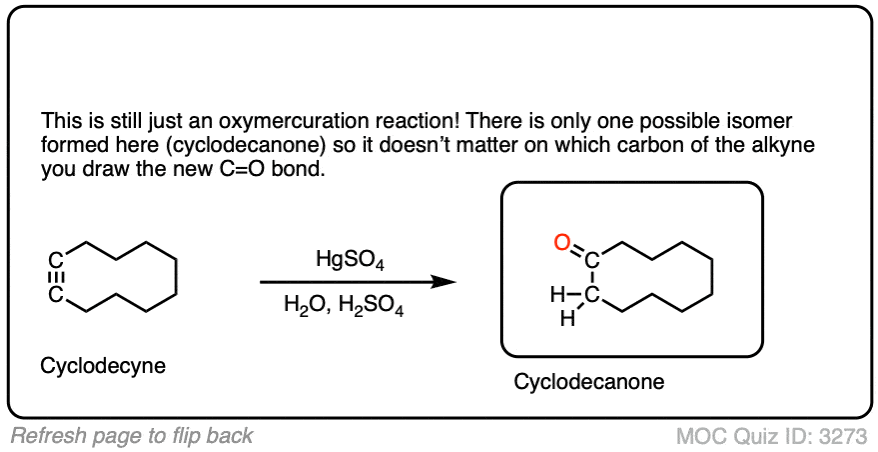

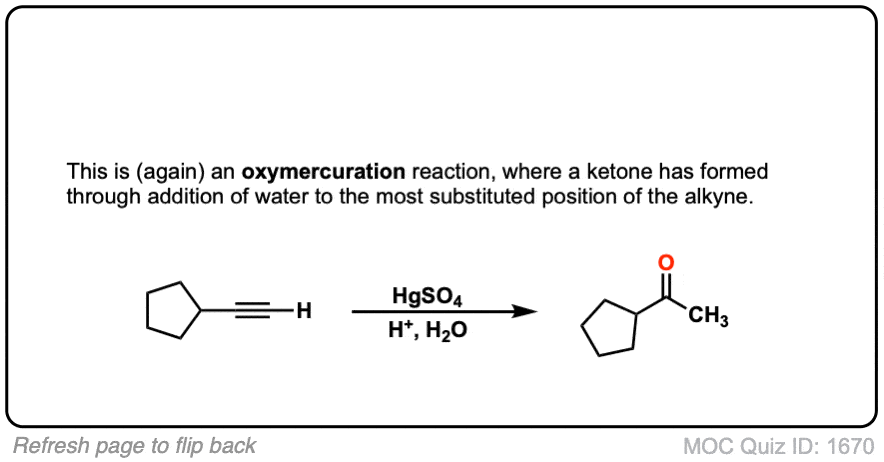

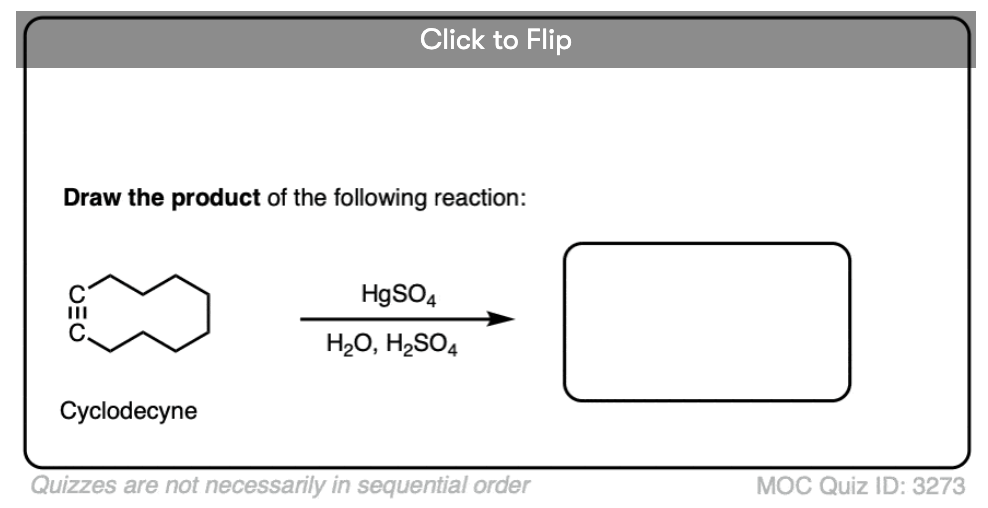

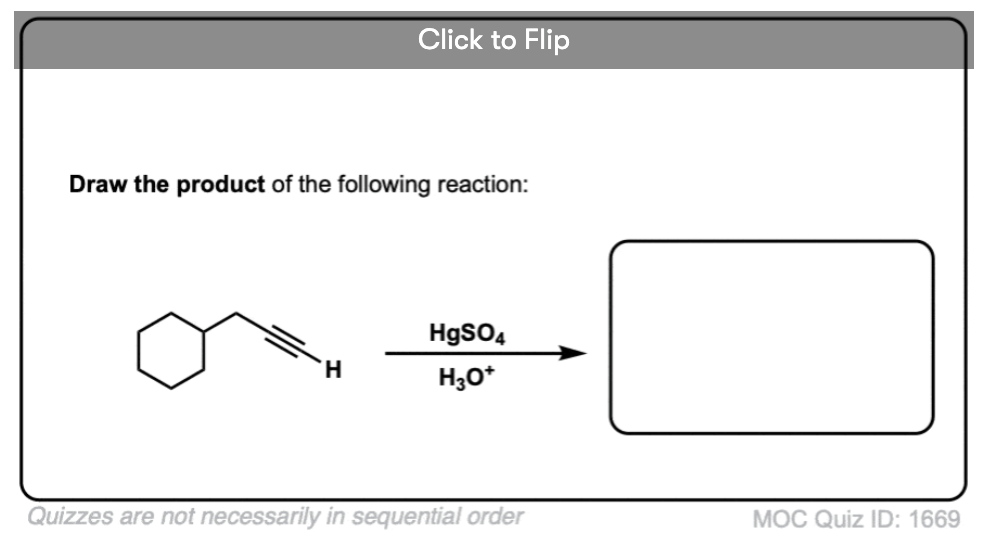

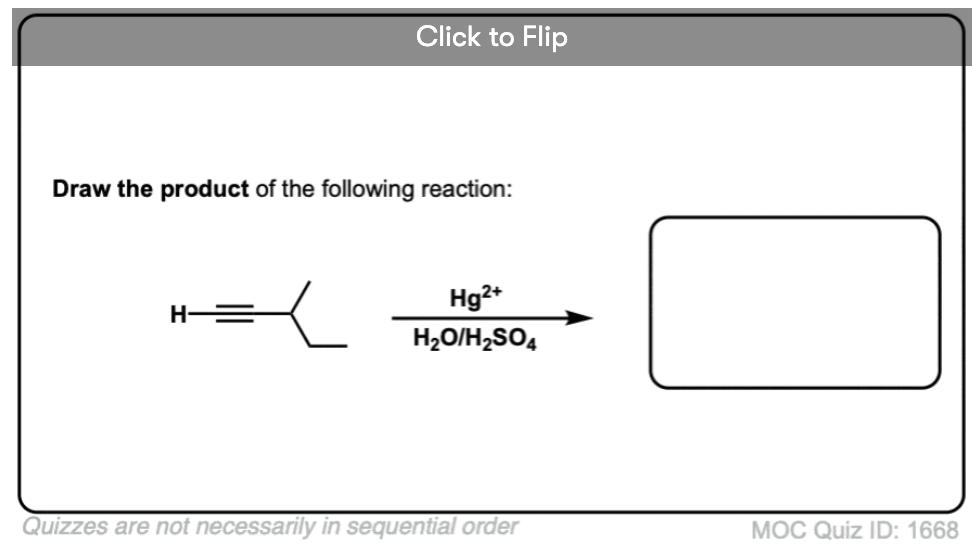

5. Alkynes Can Also Be “Hydrated” via Oxymercuration

Wait – we’re not done! There’s another way to “hydrate” alkynes, just like there was with alkenes. We can also perform the same reaction with mercury, water and strong acid [sulfuric acid, H2SO4 is the usual acid of choice]. For interesting reasons we wont get into at the moment, NaBH4 is not generally for removal of the mercury with alkynes; it is sufficient to merely have water and acid present.

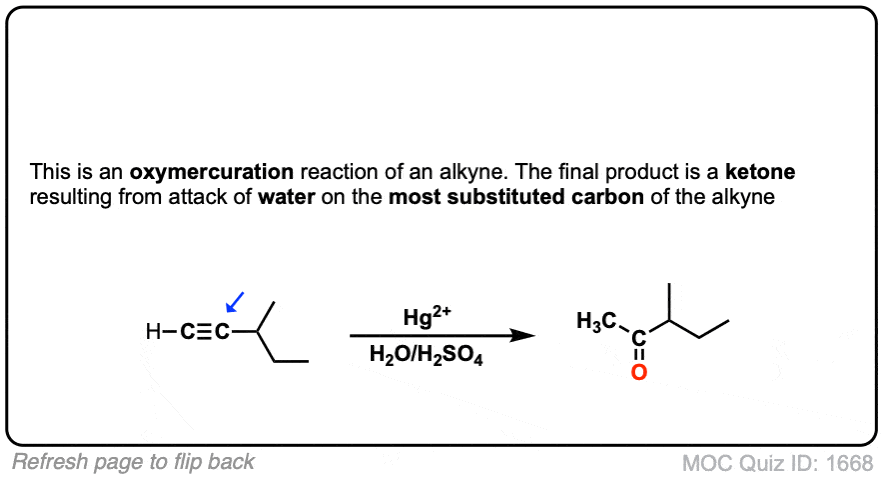

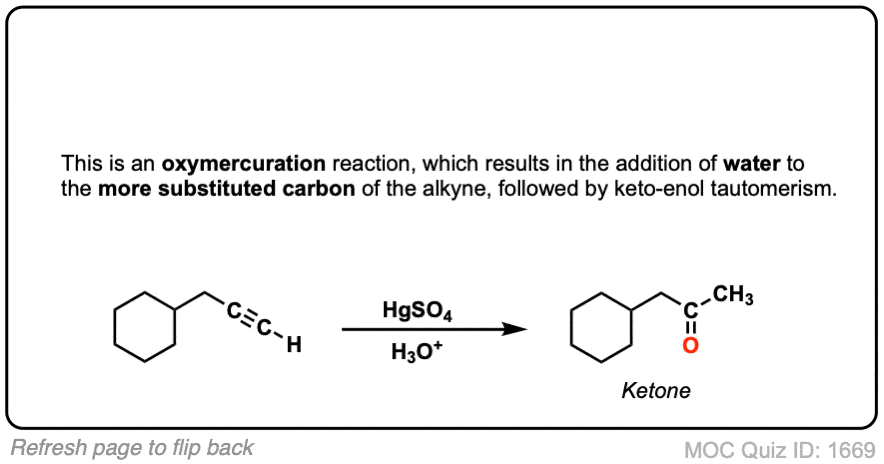

oxymercuration of alkynes with mercuric sulfate and water and sulfuric acid h2so4 gives markovnikov ketone

6. Hydroboration Of Alkynes Occurs With “Anti-Markovnikov Selectivity”, Giving Aldehydes From Terminal Alkynes

There’s also hydroboration. Remember how hydroboration-oxidation of alkenes with BH3 and H2O2 gives us “anti-Markovnikov” hydration of alkenes? (See post: Hydroboration of Alkenes)

Likewise, we can use the same reaction to perform “anti-Markovnikov” hydroboration of alkynes.

Just as in the cases above, we initially obtain an enol. However, under the reaction conditions, keto-enol tautomerism results in formation of the aldehyde. (For more, see article: Hydroboration of Alkynes With R2BH)

hydroboration of alkenes gives anti markovnikov alkene hydroboration of alkyne gives anti markovnikov enol which tautomerizes to aldehyde

Bottom line here: if we start with a “terminal” alkyne, that is an alkyne where one of the carbons is attached directly to H – then we will obtain ketones with H3O+/H2SO4 or via oxymercuration, and aldehydes via hydroboration.

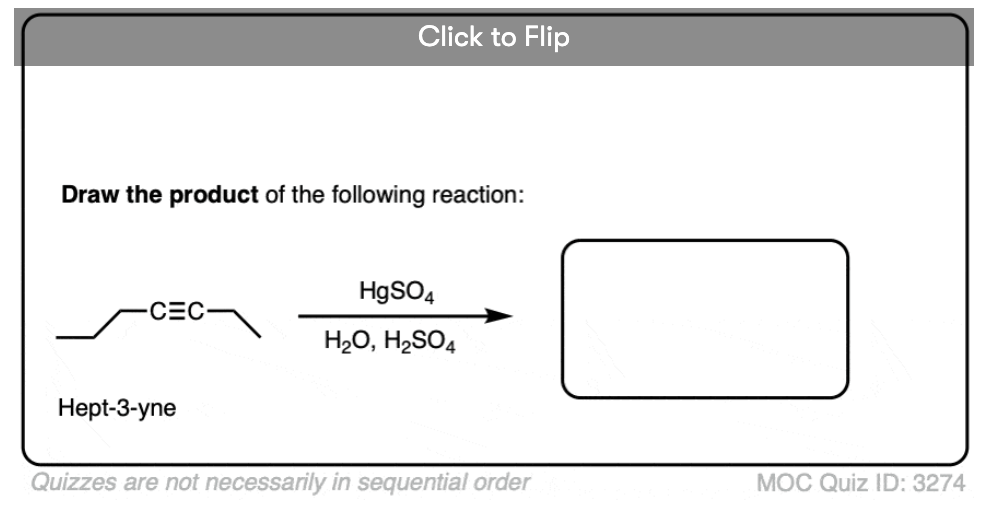

7. Depending On The Alkyne, Mixtures Of Products Can Be Obtained

One final note: if we use an alkyne where both ends are directly attached to carbon, we will obtain a mixture of products. That’s just “Markovnikov’s rule” – remember that if each carbon in the multiple bond is attached to an identical number of hydrogens, then we can’t determine which is the “most substituted” for our purposes. Like in this example.

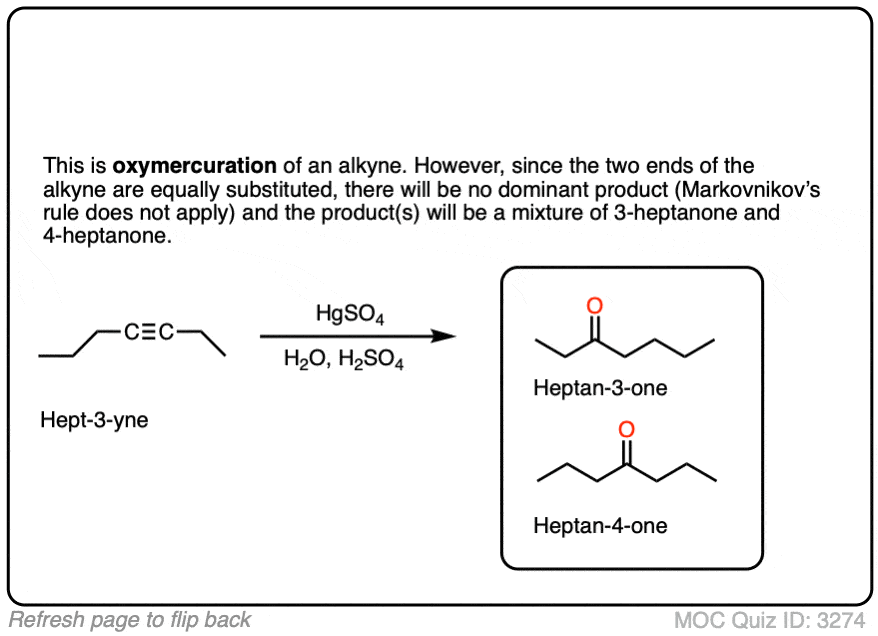

if both ends of alkyne are equally substituted hydroboration or oxymercuration of alkyne gives mixtures of products

Next Post: Alkyne Reaction Patterns – The Carbocation Pathway


Notes

Note 1. Note: while BH3 is sometimes written for this, it’s not strictly correct to do so. Why? Double addition (see  ref)

Instead often use sterically hindered boranes, such as disiamyl borane or 9-BBN that both increase the proportion of addition to the less substituted carbon and also prevent a second hydroboration reaction.


(Advanced) References and Further Reading

  1. THE HYDROBORATION OF ACETYLENES – A CONVENIENT CONVERSION OF INTERNAL ACETYLENES TO CIS OLEFINS OF HIGH PURITY AND OF TERMINAL ACETYLENES TO ALDEHYDES
    Brown, H.C.; Zweifel, G.
    J.  Am. Chem. Soc. 1959 81 (6), 1512
    DOI: 10.1021/ja01515a058
    The original paper describing the hydroboration of alkynes, by Nobel Laureate Prof. H. C. Brown (Purdue).
  2. PALLADIUM-CATALYZED REACTION OF 1-ALKENYLBORONATES WITH VINYLIC HALIDES: (1Z,3E)-1-PHENYL-1,3-OCTADIENE
    Miayura, N.; Suzuki, A.
    Org. Synth. 1990, 68, 130
    DOI:15227/orgsyn.068.0130
    A procedure by Nobel Laureate Akira Suzuki for the hydroboration of an alkyne with catecholborane. The resulting product can then be subsequently used in a Pd-catalyzed Suzuki coupling reaction.
    A variety of other reagents were developed by H. C. Brown for hydroboration, including catecholborane, 9-BBN, and disiamylborane. The advantage with these reagents is that they will undergo monoadditionto alkynes, whereas borane will add twice. Representative references for the reaction of these reagents with alkynes are below:
  3. Catecholborane (1,3,2-Benzodioxaborole) as a New, General Monohydroboration Reagent for Alkynes. A Convenient Synthesis of Alkeneboronic Esters and Acids from Alkynes via Hydroboration
    Brown, H. C.; Gupta, S. K.
    J. Am. Chem. Soc. 1972 94(12), 4370
    DOI: 10.1021/ja00767a072
  4. 50. Hydroboration of Representative Alkynes with 9-Borabicyclo[3.3.1]nonane-a Simple Synthesis of Versatile Vinyl Bora and gem-Dibora Intermediates
    Brown, H. C.; Scouten, C. G.; Liotta, R.
    J. Am. Chem. Soc. 1979 101 (1), 96
    DOI:10.1021/ja00495a016
  5. XI. The Hydroboration of Acetylenes-A Convenient Conversion of Internal Acetylenes into cis-Olefins and of Terminal Acetylenes into Aldehydes
    Brown, H. C.; Zweifel, G.
    J. Am. Chem. Soc. 1961, 83(18), 3834
    DOI: 10.1021/ja01479a024
    This paper describes the use of disiamylborane for the selective monohydroboration of alkynes.
  6. UNSATURATION PHENOMENA OF ACETYLENIC ACIDS AND ESTERS. III. THE CONSTITUTION OF SOME MERCURY DERIVATIVES
    William Whalley Myddleton, Arthur W. Barrett, and John H. Seager
    Journal of the American Chemical Society 1930, 52 (11), 4405-4411
    DOI:
    10.1021/ja01374a032
    One of the earliest reports on oxymercuration in the literature.
  7. 1-ACETYLCYCLOHEXANOL
    Gardner W. Stacy and Richard A. Mikulec
    Org. Synth. 1955, 35, 1
    DOI:
    10.15227/orgsyn.035.0001
    A pretty standard oxymercuration-hydration reaction of a terminal alkyne in Organic Syntheses, a well-regarded source of independently verified and reproducible organic chemistry laboratory procedures.
  8. Enol acetates, enol ethers, and amines by mercuration of acetylenes
    Paul F. Hudrlik and Anne M. Hudrlik
    The Journal of Organic Chemistry 1973, 38 (25), 4254-4258
    DOI:
    10.1021/jo00964a009
    The authors in this publication show that the intermediate mercurinum ion can react with nucleophiles other than water, expanding the scope of this reaction.
  9. An efficient synthesis of .gamma.-methylene-.gamma.-butyrolactone (.alpha.’-angelicalactone). Application to the synthesis of deoxyobtusilactone and deoxyisoobtusilactone
    Richard A. Amos and John A. Katzenellenbogen
    The Journal of Organic Chemistry 1978, 43 (4), 560-564
    DOI:
    10.1021/jo00398a007
    Mercurinium ions can also undergo intramolecular cyclizations as well – in this case, the terminal alkyne can cyclize with the carboxylic acid on the other end in the presence of Hg salts to yield lactones.Prof. Bassetti (Italy) published a nice series of papers on the mechanism of mercurinium ion formation from alkynes:
  10. Metalation of alkynes. 1. Effect of alkyne structure on the rate of acetoxymercuration
    Mauro Bassetti and Barbara Floris
    The Journal of Organic Chemistry 1986, 51 (22), 4140-4143
    DOI:
    10.1021/jo00372a007
  11. Metalation of alkynes. Part 2. Behaviour of alkynes with mercury(II) acetate in methanol: a systematic reinvestigation
    Mauro Bassetti and Barbara Floris
    J. Chem. Soc., Perkin Trans. 2, 1988, 227-233
    DOI:
    10.1039/P29880000227
  12. Geminal Organometallic Compounds. I. The Synthesis and Structure of 1,1-Diborohexane
    G. Zweifel and H. Arzoumanian
    Journal of the American Chemical Society 1967 89 (2), 291-295
    DOI: 10.1021/ja00978a022
    1-Hexyne undergoes double hydroboration reaction when treated with BH3. This is why bulkier hydroboration reagents such as disiamyl borane or 9-BBN are used.
