s-cis and s-trans

Last updated: February 7th, 2023 |

“s-cis and s-trans conformations of dienes.” What does those terms mean?

  • Ā The “scis” is a conformation where both double bonds are on the same side of a sigma bond.
  • Recall that there is free rotation about sigma bonds, so we say, “s-cis” and “s-trans” to distinguish it from “cis” and “transconfigurations which are locked.
  • As we’ll soon see, in the Diels-Alder reaction, it’s important that the diene be in the “scis”Ā conformation, otherwise the two reacting ends are too far apart.

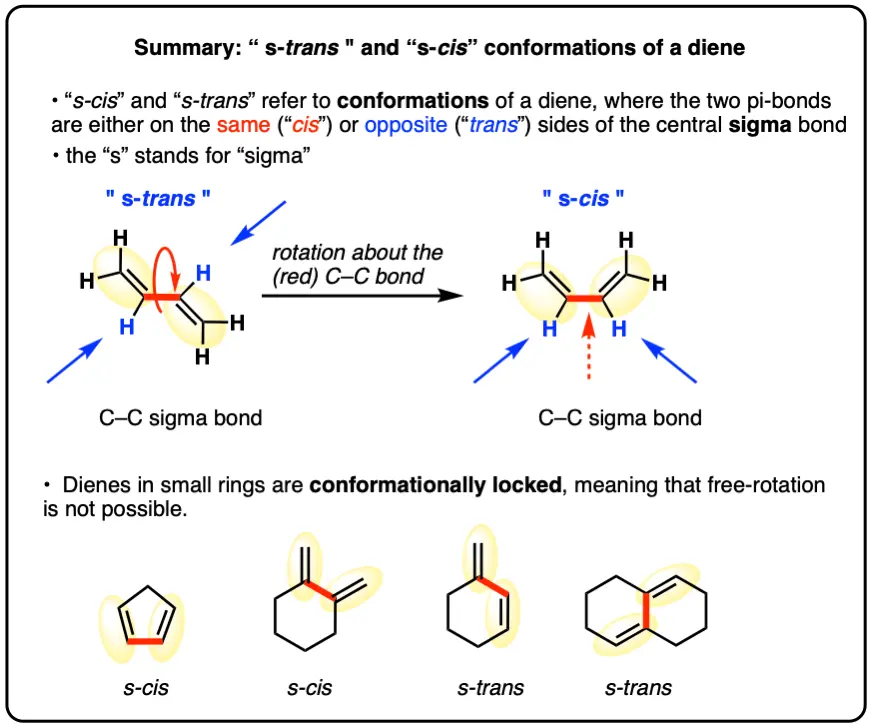

summary-s cis and s trans conformations of a diene

Table of Contents

  1. Recall That Cis- AndĀ Trans– Isomers (“Geometric Isomers” Cannot Interconvert Without Breaking Bonds
  2. s-cis and s-trans Conformations In Butadiene
  3. The s-transĀ Conformation Is Lower In Energy
  4. Some Dienes Are “Locked” In The s-cis or s-trans Orientation
  5. Conformations In Amides: (Z) and (E)
  6. Notes
  7. (Advanced) References and Further Reading

1. Recall That Cis- AndĀ Trans– Isomers (“Geometric Isomers” Cannot Interconvert Without Breaking Bonds

Recall cis and trans. The reason AldrichĀ Chemical Co. can sell 99%Ā cis-2-butene and 99%Ā trans-2-butene in separate bottles is because of restricted rotation about the C-C pi bond. Rotation is energetically disfavored since itĀ  would destroy the overlap of the adjacent p-orbitals.

We use theĀ terms “cis” and “trans”Ā to distinguishĀ the different configurations of hydrogensĀ across the C-C pi bond.

drawing of trans 2 butene and cis 2 butene showing that they are stereoisomers

In contrast to pi bonds, rotation about single (sigma) bonds happens all the time – thousands of times per second, in fact.

You might recall that we refer to the different shapes of a molecule that arise through these rotations, “conformations“.

For reasons that will soon become clear, it’s sometimes helpful to borrowĀ the “cis” and “trans” terminology forĀ namingĀ particularly important conformations.

2. s-cis and s-trans Conformations In Butadiene

A particularly important case comes up with dienes. In butadiene, the two individual pi bonds may be either on the opposite side of the single bond or on the same side of the single bond. It would be incorrect to refer to these as strictlyĀ trans andĀ cis since these are conformations (dynamic!), not configurations (static). But we can get the best of both worlds if we cheat a bit and use the prefixĀ “s”Ā (for “sigma” , or “single” if you prefer).

Voila:Ā s-cisĀ andĀ s-trans Ā conformations!

s cis and s trans feres to the orientation about a rotatable carbon carbon single bond d

A video says a thousand words. Pay attention to the two blue hydrogensĀ of the diene below (butadiene)Ā and their orientation about the central C-C single (“sigma”) bond. In one conformation, they’re oriented “trans” across the C-C single bond, and in the other conformation, they’re oriented “cis” across the C-C single bond.

via GIPHY

That’s really all there is to it.

3. The s-transĀ Conformation Is Of Lower Energy

But while we’re on the topic of s-cis and s-trans for dienes, let’s look at a few more details.

Which conformation is lower energy?

what is lower energy s cis or s trans - the s trans conformation is lower in energy than s cis because of steric repulsion it is about 2 kcal mol less stable

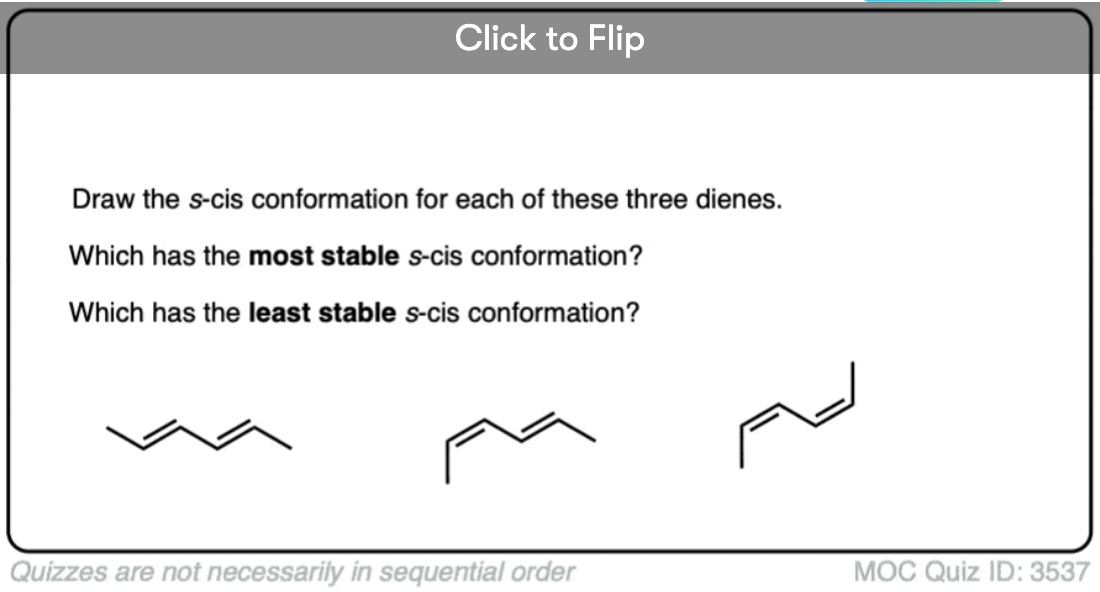

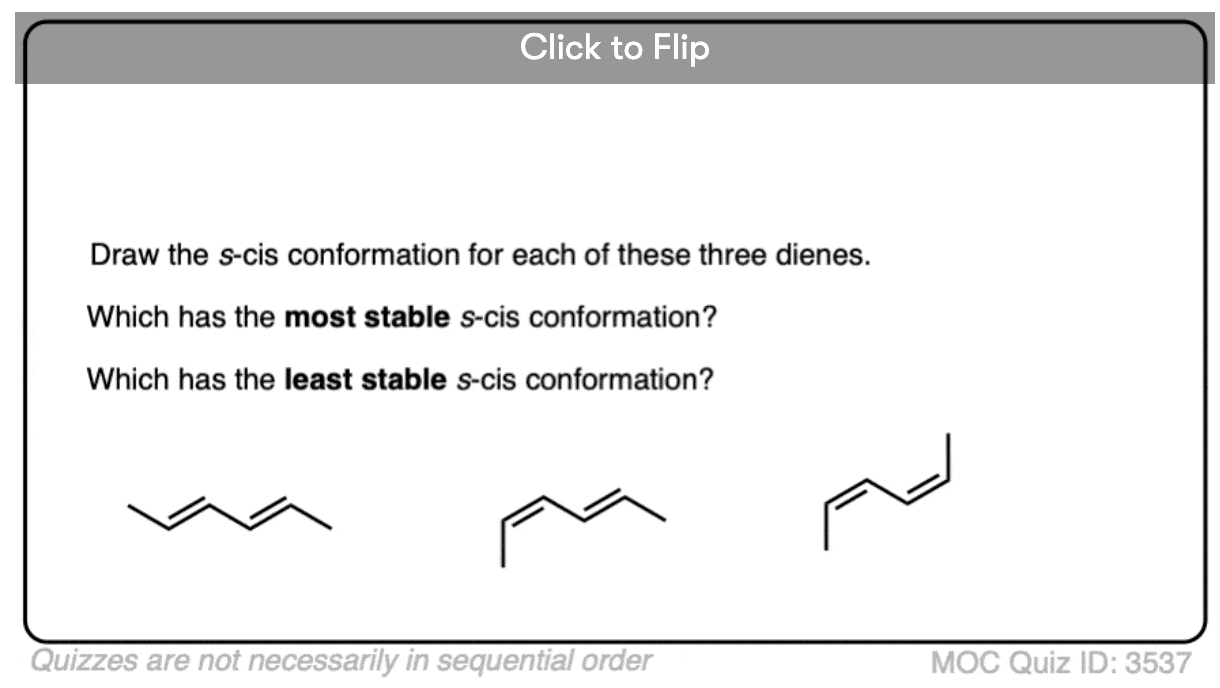

Note that in theĀ s-cis conformation, the “inside” hydrogens on C-1 and C-4 are in close proximity to each other. This leads to some Van Der Waals repulsion, and the result is that the s-cisĀ conformation is about 2.3 kcal/mol less stable. At any one time, about 96% of butadiene is in theĀ s-trans conformation.

4. Some Dienes Are “Locked” In The s-cis or s-trans Orientation

There are situations where dienes are locked in a Ā particular orientation. For example, in 1,3-cyclohexadiene and cyclopentadiene, the two pi bonds are locked in aĀ s-cis orientation, while the diene bottom right is locked in the s-trans orientation.

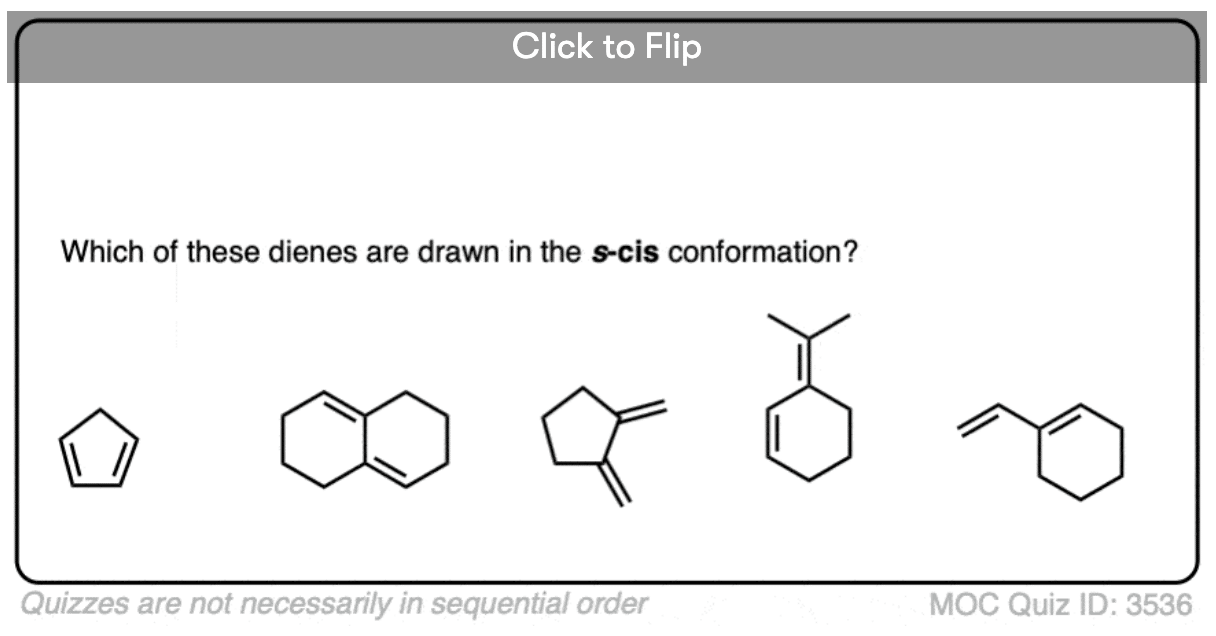

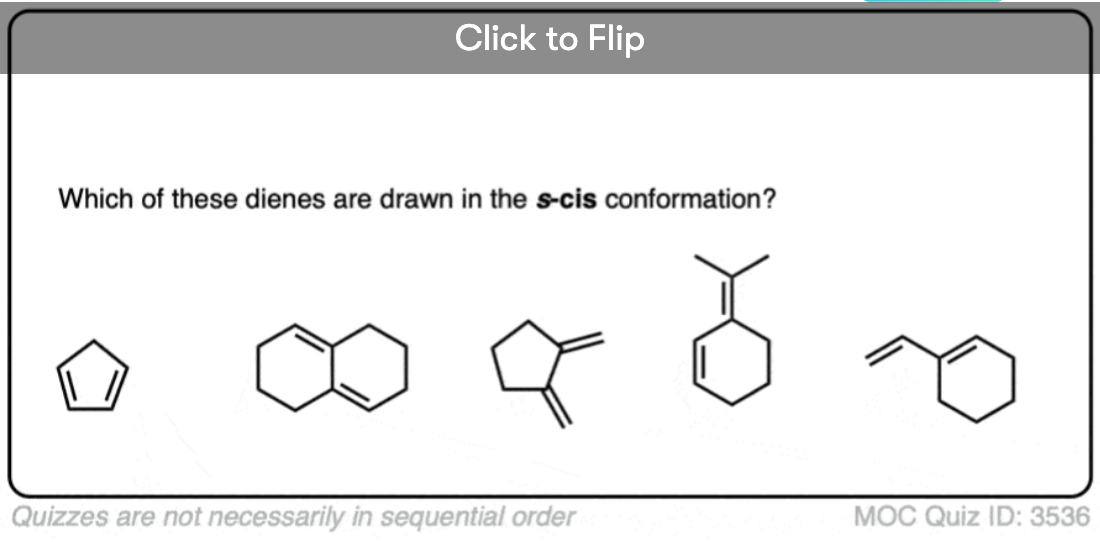

some dienes are locked in the s cis conformation such as cyclohexadiene and cyclopentadiene and some dienes are locked in s trans

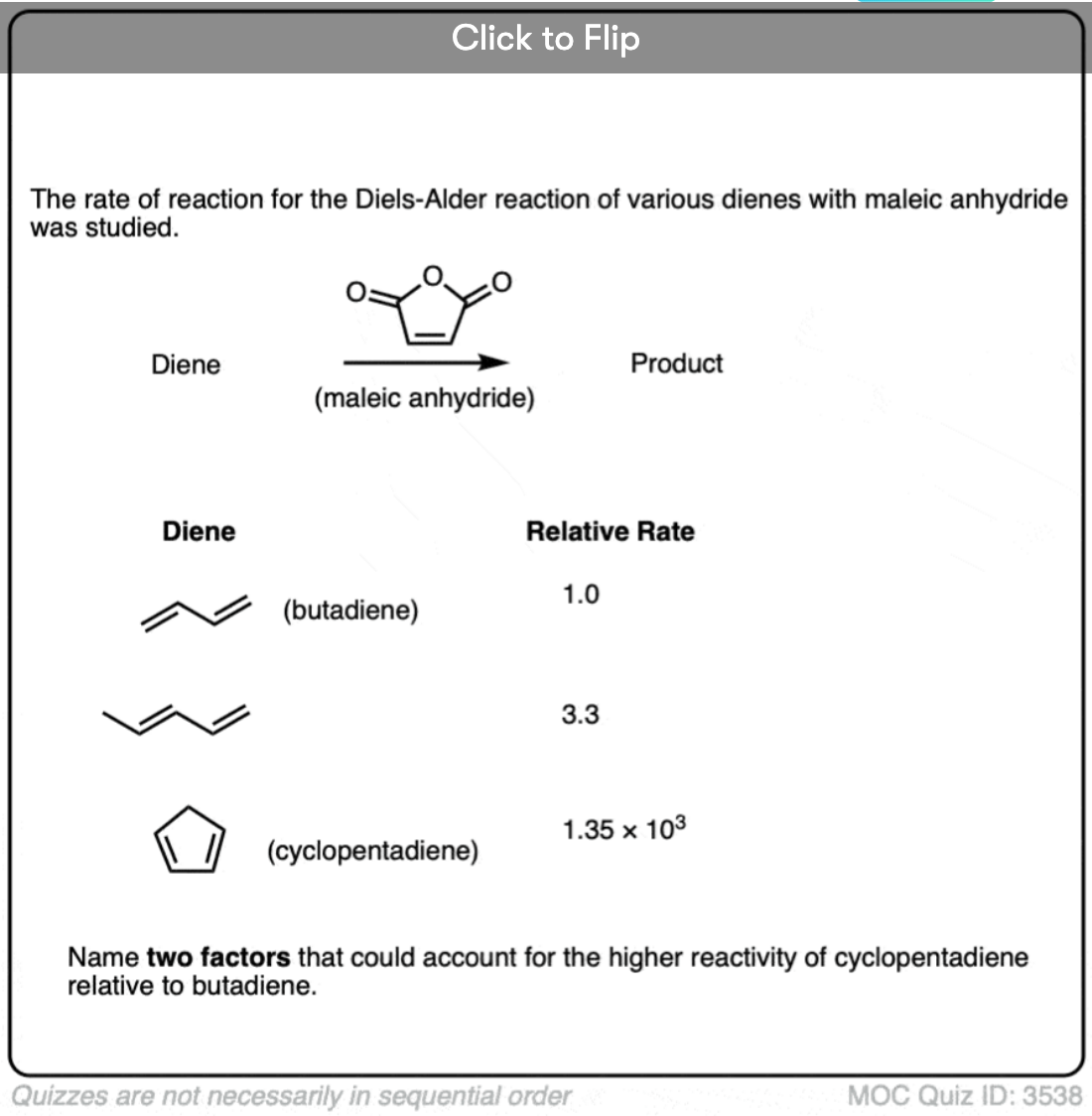

This will become more relevant in the next post, when we introduce the Diels Alder reaction.

5. Conformations In Amides: (Z) and (E)

One final note. It’s also useful to borrow the terms for amides, which have free (if somewhat restricted) rotation about the C-N bond.

Here, we can refer toĀ s-E or s-ZĀ conformations of the amide (see below).

dienes are not the only functional group that can have s cis and s trans for example amides6-dienes are not the only functional group that can have s cis and s trans for example amides


Notes


(Advanced) References and Further Reading

  1. Thermodynamic Properties of Gaseous 1,3ā€Butadiene and the Normal Butenes above 25Ā°C Equilibria in the System 1,3ā€Butadiene,Ā nā€Butenes, andĀ nā€Butane
    J. G. Aston, G. Szasz, H. W. Woolley, F. G. Brickwedde.
    J. Chem. Phys.Ā 14, 67 (1946)
    DOI: https://doi.org/10.1063/1.1724108
    One of the earliest studies of rotational barriers in butadiene indicate that the s-trans is favored over theĀ s-cis by about 2.3 kcal/mol.
  2. Conformational studies on small molecules
    E. B. Wilson
    Chem. Soc. Rev. 1972, 1, 293-318
    DOI: 10.1039/CS9720100293
    This review mentions that dienes such as butadiene can exist in s-cis and s-trans forms. E. B. Wilson was a prominent spectroscopist in the 20th century, and even though he never received a Nobel Prize, his son (K. G. Wilson) and PhD student (Dudley Herschbach) both did.
  3. Diene Structure and Diels-Alder Reactivity
    Clare A. Stewart
    The Journal of Organic Chemistry 1963, 28 (12), 3320-3323
    DOI: 10.1021/jo01047a010
    This studies the Diels-Alder reactivity of various dienes. Most important here is thatĀ cis-1-methylbutadiene is relatively unreactive in the Diels-Alder, since in theĀ s-cis conformation the methyl group “bumps” into the C-H bond of the terminal alkene.
  4. Conformational analysis. 120. Small polyenes
    Julia C. Tai and Norman L. Allinger
    Journal of the American Chemical Society 1976, 98 (25), 7928-7932
    DOI: 10.1021/ja00441a007
    It is possible to investigate the structure of molecules in detail through computational methods, and Table 1 in this paper contains the energy differences between the s-cis and s-trans forms of various dienes.
  5. Rotational barriers and stable rotamers in 1,3-butadiene, acrolein and glyoxal
    George R. De MarƩ
    Mol. Struc. THEOCHEM 1984, 107, 127-132
    DOI: 10.1016/0166-1280(84)80047-0
    Another paper studying the rotational barriers of butadiene through computational methods. While these calculations may have required supercomputers back then, nowadays a modern laptop will be able to carry these out in minutes (or less)!
  6. Planar s-cis-1,3-butadiene
    E. Squillacote, R. S. Sheridan, O. L. Chapman, and F. A. L. Anet
    Journal of the American Chemical Society 1979, 101 (13), 3657-3659
    DOI: 10.1021/ja00507a042
    This paper reports the characterization (FT-IR) of s-cis butadiene through an unusual method ā€“ cooling the hot (400 ā€“ 900 Ā°C) vapors on a very cold (30 K) surface. By measuring the rate of disappearance of a specific band attributed to s-cis butadiene (1430 cm-1), the authors were able to determine the activation enthalpy for converting s-cis to s-trans butadiene to be 3.9 kcal/mol.
  7. Thermodynamics of conformational change in 1,3-butadiene studied by high-temperature ultraviolet absorption spectroscopy
    Philip W. Mui and Ernest Grunwald
    Journal of the American Chemical Society 1982, 104 (24), 6562-6566
    DOI: 10.1021/ja00388a014
    In this paper, the authors do a more rigorous experimental study of the energy difference between the s-cis and s-trans forms of butadiene and determine it to be 2.9 kcal/mol. Prof. Grunwald did his undergraduate studies and PhD at UCLA underĀ  Prof. Saul Winstein, and contributed to the development of the ā€˜Grunwald-Winstein equationā€™ in solvolysis.
  8. Le 2,3ā€DitertiobutylbutadiĆØne
    J. Backer
    Rec. Trav. Chim. Pays-Bas 1939, 58 (7), 643-661
    DOI: 10.1002/recl.19390580712

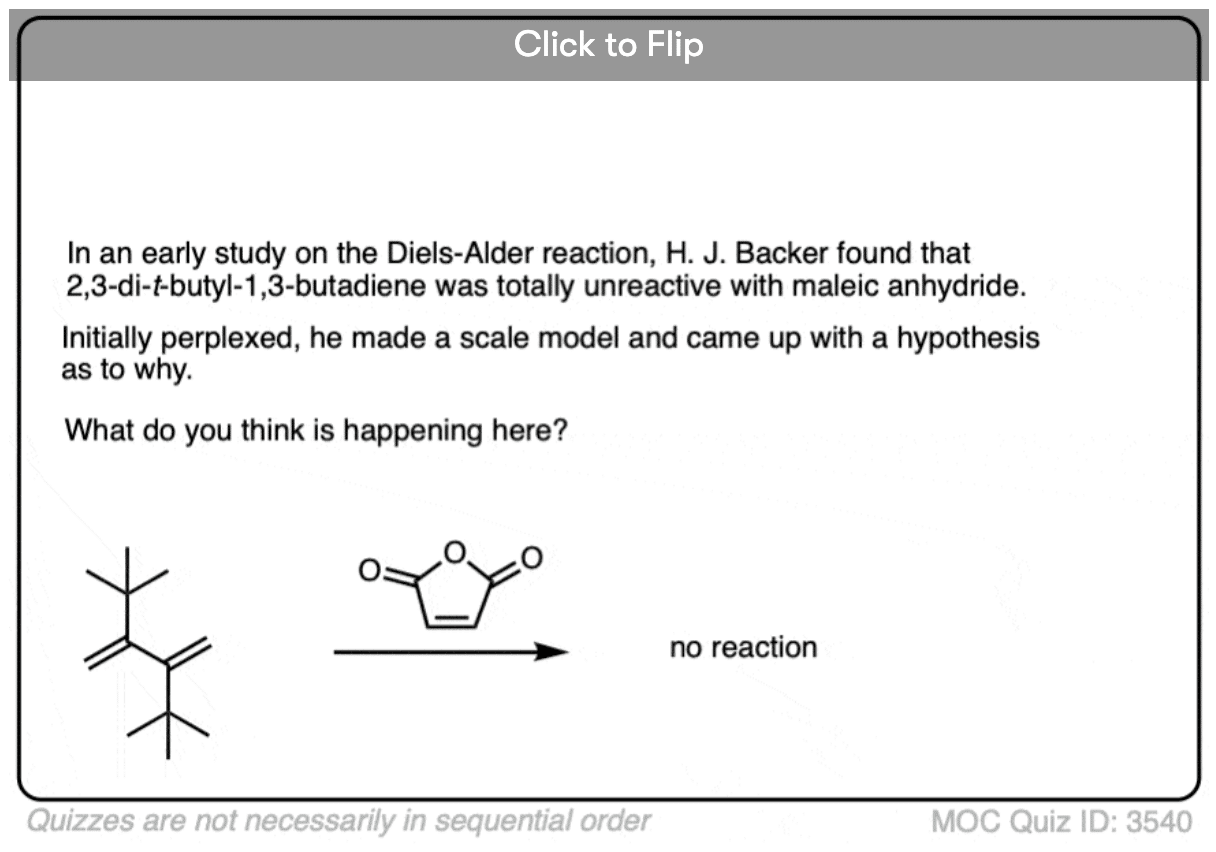

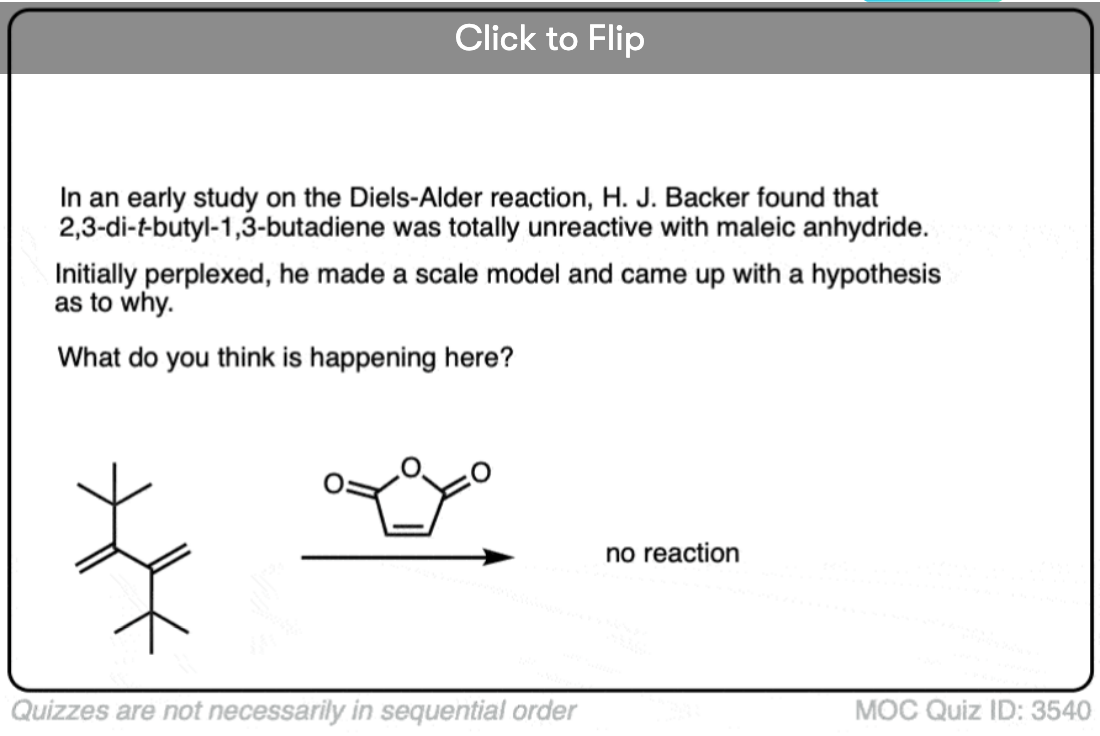

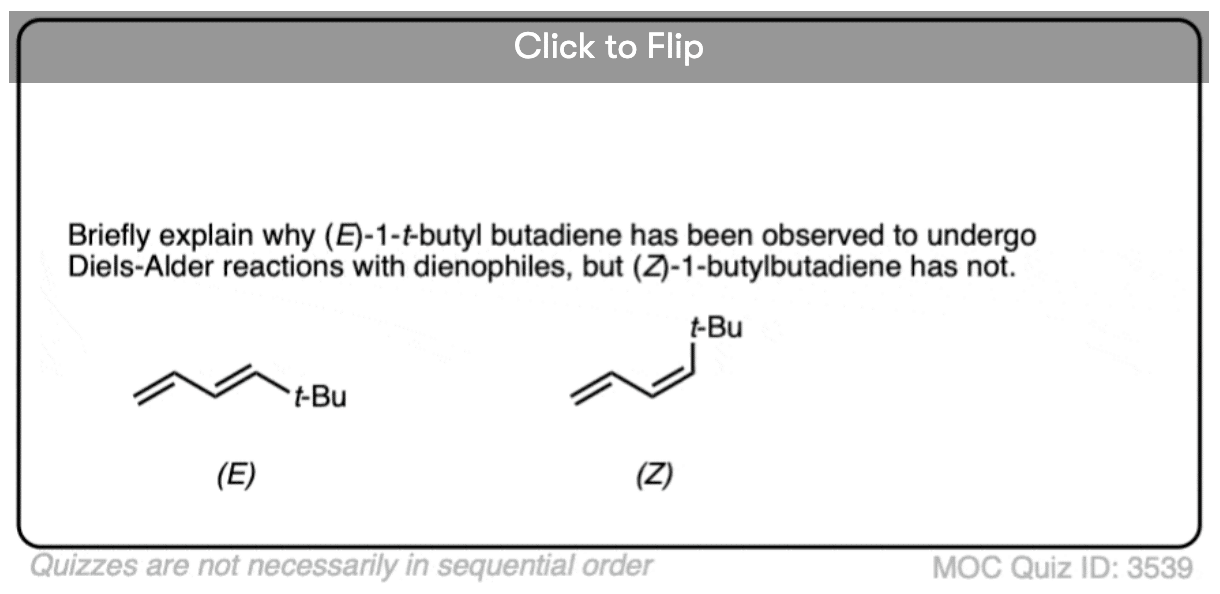

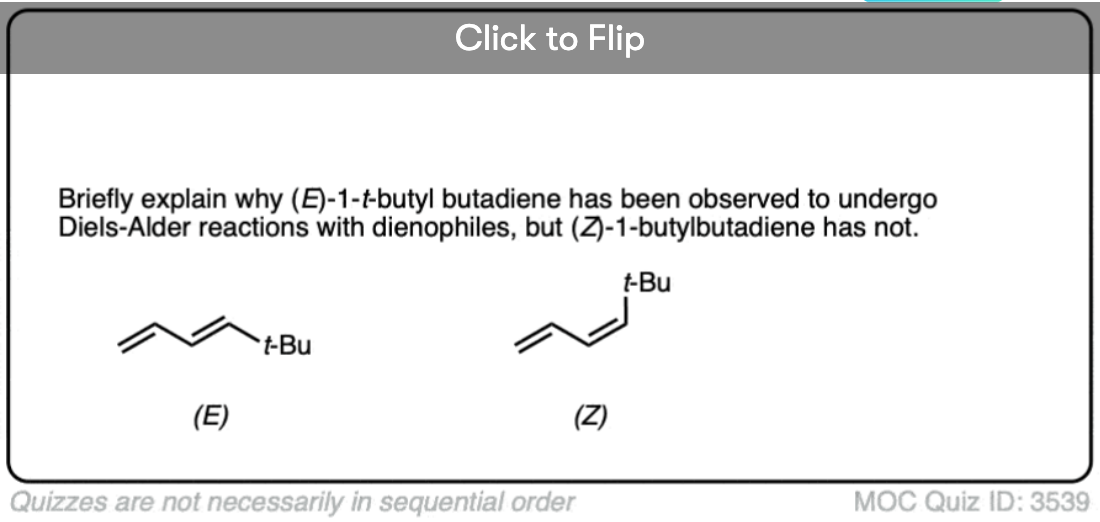

    Diels-Alder reactions of 2,3-di-t-butyl-1,3-butadiene have not been observed – theĀ s-cis form is far too disfavored, since it brings together twoĀ t-butyl groups in close proximity!
