The Diels-Alder Reaction

Last updated: February 23rd, 2020 |

The Diels-Alder Reaction Is Awesome

Today we’ll introduce  a reaction I consider to be the most useful and powerful reaction in all of organic chemistry: the Diels-Alder reaction.

Table of Contents

  1. Chemists Unanimously Agree: The Diels-Alder Reaction Is Awesome
  2. The Diels-Alder Reaction
  3. Don’t Be Underwhelmed!
  4. The Basic Pattern of the Diels-Alder Reaction
  5. The Arrow-Pushing Mechanism of the Diels-Alder
  6. Four Key Things To Know About The Diels-Alder Reaction
  7. Four Key Things, Part 1: The Diene Must Be Conjugated
  8. Four Key Things, Part 2: The Diene Must Be In The s-cis Conformation
  9. Four Key Things, Part 3: Substituents On The Diene Or Dienophile Do NOT Affect The Bond-Forming / Bond-Breaking Pattern Of The Diels-Alder
  10. Four Key Things, Part 4. However, Substituents DO Affect The Rate Of The Diels-Alder. The Rate Is Increased By EWG’s On The Dienophile And Electron-Donors On The Diene
  11. Notes
  12. Appendix 1:What About Other Ring Sizes?
  13. Appendix 2: Three Spectacular Examples of The Diels-Alder Reaction
  14. (Advanced) References and Further Reading

1. Chemists Unanimously Agree: The Diels-Alder Reaction Is Awesome

But don’t take some random blogger’s word for it. Here are three eminent chemists opinion on this reaction.

quotes from famous practitioners of the diels alder reaction robert b woodward k c nicolau e j corey

2. The Diels-Alder Reaction

OK. Are you ready to see it?

Prepare yourself.

Here it is:

seeing the simplest ossible diels alder reaction is quite underwhelming butadiene and ethylene new six membered ring

My work is done here, folks.

Lesson over!

[drops mic]

3. Don’t Be Underwhelmed!

…wait. You’re not amazed? You’re not impressed? You are not blown away by the sheer power and beauty of this amazingly powerful process?

You are forgiven. Truth be told, I was a little underwhelmed myself when learned this reaction back in undergrad. [Nor was I as impressed as I should have been with the Cope rearrangement, which, when drawn in its simplest form, seemed pointless. In the name of Leo Paquette, I repent!].

That’s because instructors (myself included) tend to start with the most boring, simple, hand-holding examples possible so as to get the main pattern across, with the result that students miss out on seeing the really spectacular cases.

So, as much as I’d like to start with these complex and very beautiful examples of the Diels-Alder… we’ll start, as tradition dictates, in the shallow end of the pool.

[So for just a few ka-pow! examples of the Diels-Alder to spice up your day,  see the footnote – Tetrodotoxin [Kishi, 1972]. Tetracyclines [Myers, 2005]. isoOdoratin [Newhouse, 2017]

Let’s have a closer look at this extremely important reaction. First:

  • The fundamental bonds formed/bonds broken pattern
  • The simple arrow pushing mechanism

4. The Basic Pattern of the Diels-Alder Reaction

A Diels-Alder reaction brings together two components.

  • One part we call the “diene“, which is comprised of two adjacent (i.e. conjugated) pi bonds.
  • The second component is called the “dienophile“, which is to say “diene-loving”, and has at least one pi-bond.

What bonds form, and what bonds break here?

key pattern of the diels alder reaction is the reaction of a diene with a dienophiole always form a new six memberd ring always break 3 c c pi bonds and form 3 new carbon carbon bonds

  •  Three pi bonds are broken. (C1-C2, C3-C4, and C5-C6 note – this is not IUPAC numbering, it’s just for us to keep track of each carbon for book-keeping purposes.
  • Two new single bonds are formed (C1-C6, C4-C5)
  • One new pi bond is formed (C2-C3).

Pay attention to this key pattern, because it repeats itself, over and over and over.

Indeed, every Diels-Alder that we learn about will follow this pattern.

Three pi bonds are broken; two sigma bonds and one pi bond are formed. Every. Single. Time.

The result is that a new six-membered ring is formed. (Every… Single…. Time! )

5. The Arrow-Pushing Mechanism of the Diels-Alder

My usual preference is to hold off on mechanisms until we’ve walked through some experimental facts, but here I will make an exception.

There are two ways to draw the flow of electrons (both correct): clockwise and counter-clockwise.

This flow of electrons is depicted with three arrows, which I’ve labelled A, B, and C. Pay attention what bonds form and break in each arrow.

arrow pushing mechanism for diels alder reaction can be drawn two ways either with clockwise or counter clockwise flow of electrons

You should be able to see that three C–C pi bonds are broken, and three new C–C bonds are formed (2 C-C sigma bonds and one C-C pi bond) no matter whether the electron flow proceeds in a clockwise or counter-clockwise direction.

[An aside: so far, almost every reaction you’ve seen in organic chemistry involves a nucleophile and an electrophile. The electrons always flow from the nucleophile to the electrophile. This begs a question. If the electron flow can be drawn as going in either direction, then what is the nucleophile and electrophile here? That turns out to be a very deep question – one which we’re not going to answer just yet! ]

6. Four Key Things To Know About The Diels-Alder Reaction

Having looked at the electron flow and the pattern of bonds that form and break, let’s continue with some very basic questions about the Diels-Alder.

Here are four key points:

  1. The Diene Must Be Conjugated
  2. The Diene Must Be In The s-cis conformation
  3. Substituents Do NOT Change the pattern of bonds formed/bonds broken…
  4. … but they do affect the rate!

7. Four Key Things, Part 1: The Diene Must Be Conjugated

The diene must be conjugated to participate in a Diels-Alder reaction. No conjugation, no Diels-Alder.  So while 1,3-butadiene readily undergoes the Diels-Alder reaction,  1,4 pentadiene (below) does not.

in order for diels alder reaction to occur the diene must be conjugated if the diene is not conjugated no diels alder reaction occurs eg 1 4 pentadiene no diels alder

(If you’re not clear about what constitutes a “conjugated” diene, you might want to visit this post.)

8. Four Key Things, Part 2: The Diene Must Be In The s-cis Conformation

It’s not enough for the pi-bonds of the diene to be adjacent; the two C-C pi bonds must adopt a conformation where they are in the same plane (i.e. flat).

But even that isn’t sufficient. The diene must adopt a conformation where the two pi-bonds are oriented cis to the central C-C single bond in order for the Diels-Alder to occur. In other words, the diene must be in the s-cis conformation! [review: s-cis and s-trans]

For example, the Diels-Alder below occurs only when butadiene is in the s-cis conformation, and never in the s-trans.

diene must be in s cis conformation to undergo diels alder reaction s trans will not react because the termini are too far apart from each other for bonds to form

Why? In a word, geometry. In the s-trans conformation, the gap between the two ends of the diene (about 3.7 Å apart) cannot be bridged by the dienophile (about 1.3 Å long). This is only possible in the s-cis conformation.

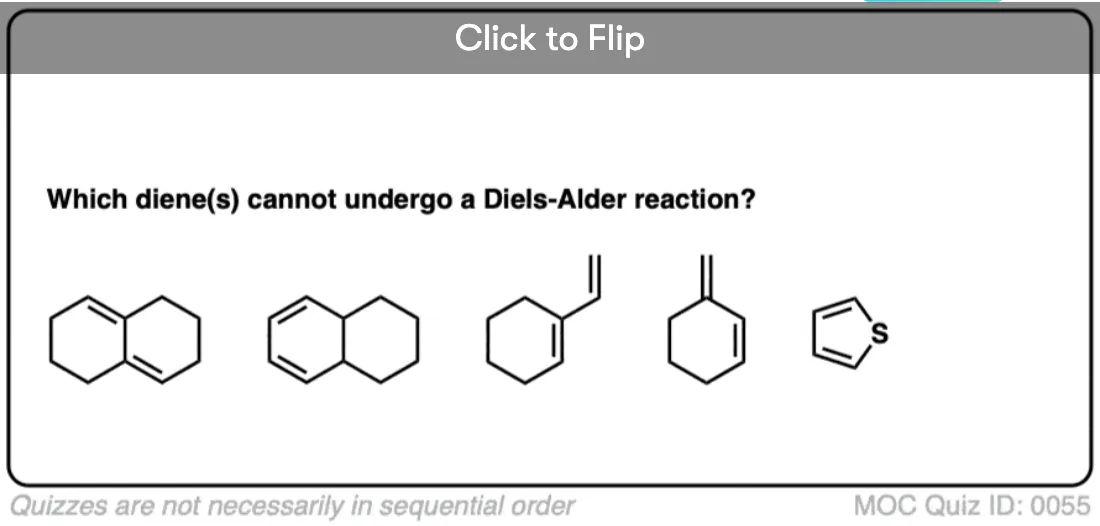

There are many examples of dienes that are “locked” in the s-trans conformation, since rotation to the s-cis conformation would require the rupture of C-C bonds. These dienes can’t undergo the Diels-Alder.

dienes locked in the s trans conformation cannot undergo the diels alder reaction

9. Four Key Things, Part 3: Substituents On The Diene Or Dienophile Do NOT Affect The Bond-Forming / Bond-Breaking Pattern Of The Diels-Alder

Adding substituents to either the diene or the dienophile does not affect the bond-forming/bond-breaking pattern of the Diels-Alder.

For instance, let’s tack a CH3 group (in red)  onto C-1 of butadiene and sketch out the same reaction with ethylene.
This is what the product will look like:

even though there might be substituents on the diene the key pattern of bonds formed and broken does not change no matter what still the same pattern

Note that the pattern of bonds that form and break is exactly the same as in the case of butadiene itself!  The pattern doesn’t call for any of the bonds to the substituents to break, so we keep them all intact.

The same is true for substitution at C-2.  The pattern of bonds that form and break is identical.

changing the substitution pattern on the diene does not change the diels alder reaction eg putting methyl group on 2 position of diene

Although it might be hard to see at first, the same is true for much more complicated examples, several of which are shown in this appendix . All the extra cabbage on the diene doesn’t change the essential reaction pattern.

[The main complication of adding substituents, as we’ll see, is accounting for the stereochemistry of the product, a topic which we’ll cover in a subsequent post.]

Everything we just said about the diene also applies to the dienophile. Substituents on the dienophile don’t affect the key pattern of bonds forming and breaking. The substituents just come along for the ride.

substitution of diene with substituted dienophile does not change the key pattern eg alkene with alkyl group attached still the same pattern

You might wonder: can we combine substitution on the diene and dienophile? You bet! It’s the same pattern as before.

example of diels alder reaction where there is a substituent on the diene and on the dienophile still the same reaction pattern

At the risk of repeating myself, let me say this again.  The pattern of the Diels-Alder calls for breaking three pi bonds and forming two single bonds and a pi bond, resulting in a six-membered ring. Any bonds to the substituents on the diene/dienophile do NOT break. These substituents stay exactly the same.

10. Four Key Things, Part 4. Substituents DO Affect The Rate Of The Diels-Alder. The Rate Is Increased By EWG’s On The Dienophile And Electron-Donors On The Diene

While substituents may not change the essential pattern of the Diels-Alder reaction, they can greatly affect its rate.

As it turns out the rate of the Diels-Alder is orders of magnitude faster if there is an electron-withdrawing group on the dienophile  [Note ] For example, replacing a hydrogen on ethene with the electron-withdrawing group CN (a nitrile) results in about a 105 increase in the reaction rate. [Note ].

effect of substituents on diels alder reaction is in the reaction rate eg electron withdrawing group on dienophile leads to a faster reaction

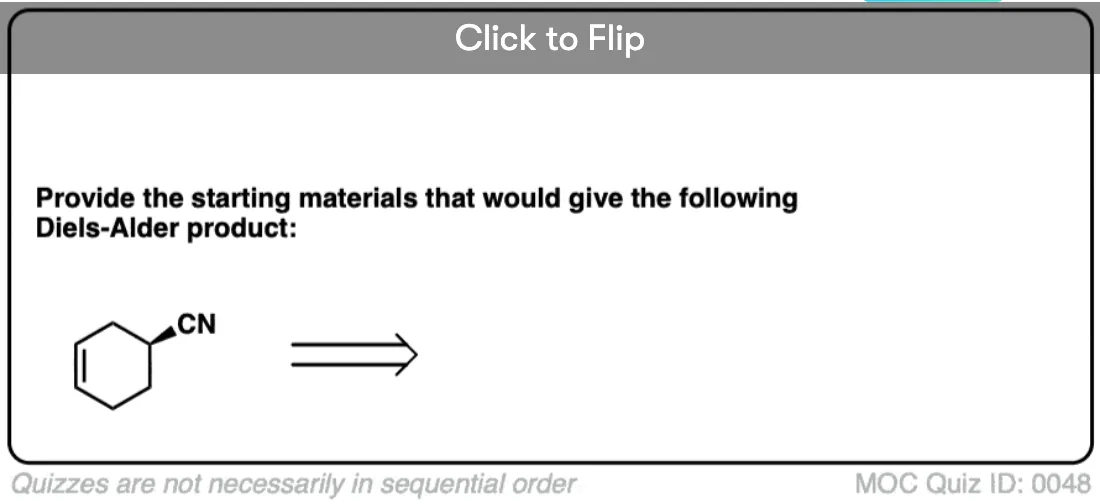

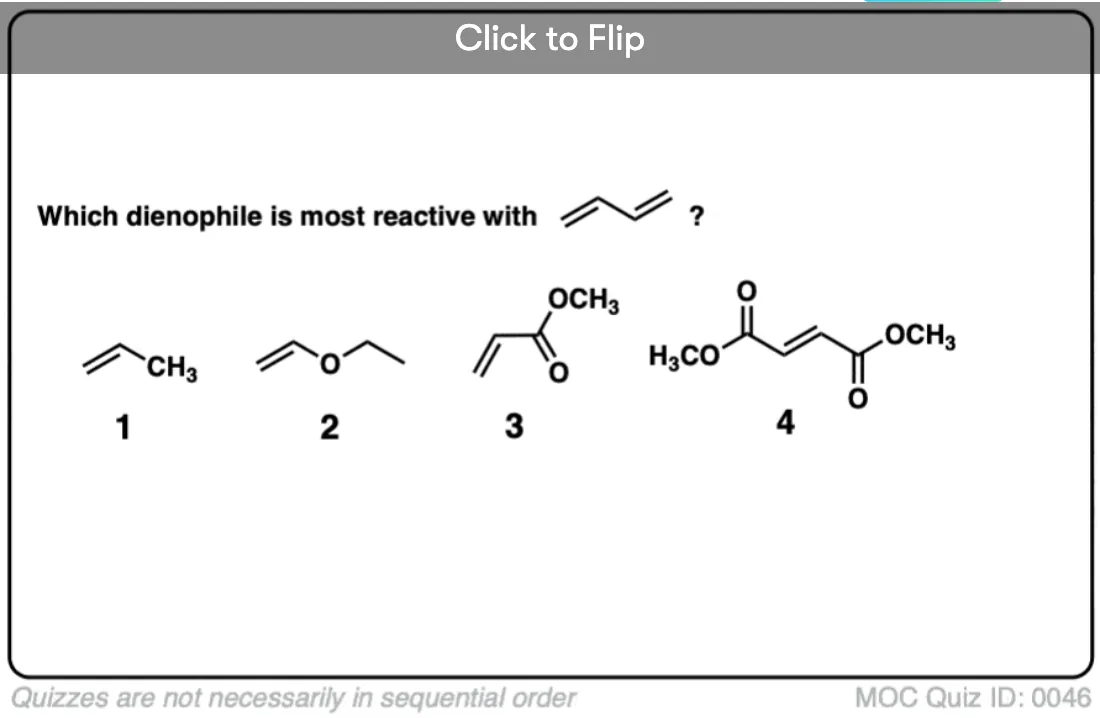

Other common electron withdrawing functional groups that will accelerate the Diels Alder reaction of dienophiles include aldehydes, ketones, and esters. In short, any functional group conjugated with the pi bond which can act as a pi acceptor will accelerate a Diels-Alder reaction with a typical diene.

examples of common dienophiles methyl acrylate dimethyl maleate dimethyl fumarate maleic anhydride

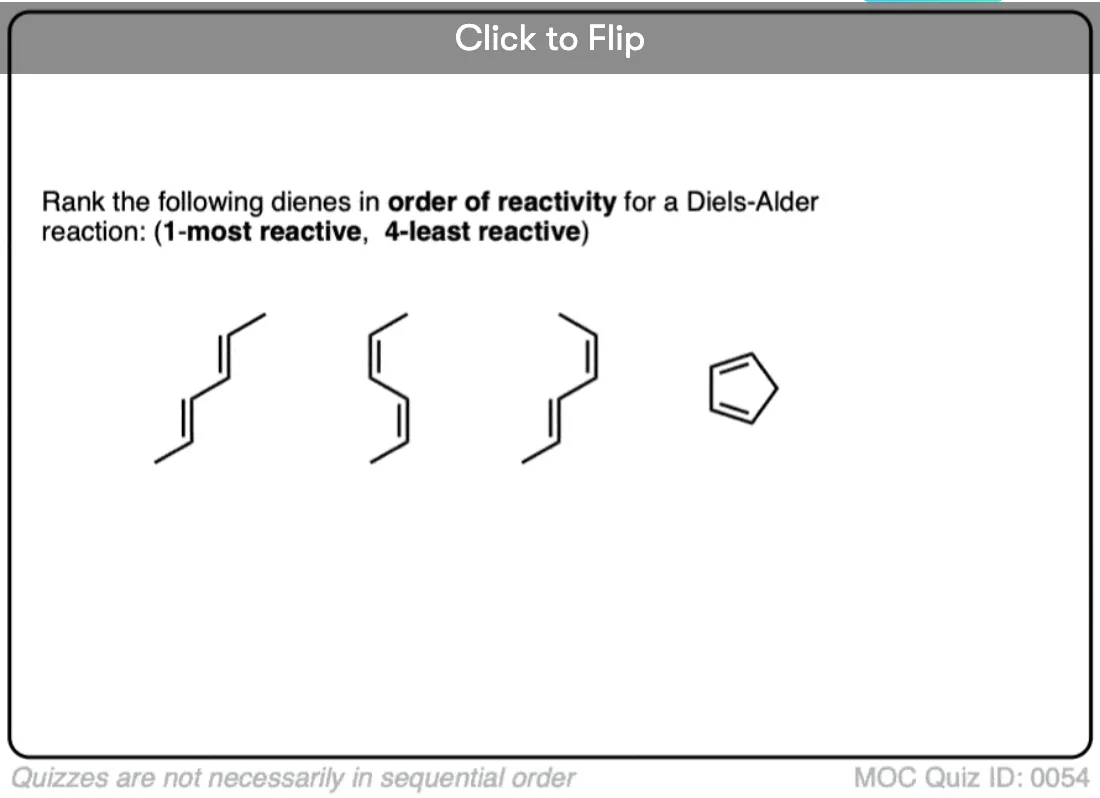

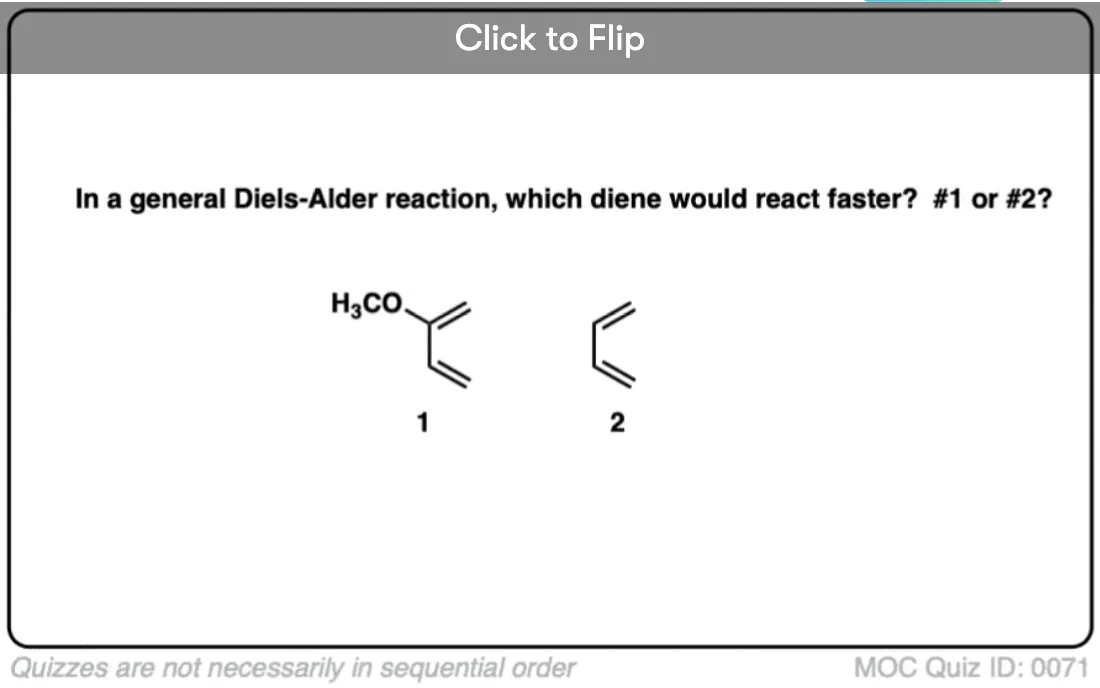

Making the diene more electron-rich also increases the rate. By “electron-rich”, I mean any substituent which can donate electron density to the diene. Alkyl groups (such as methyl and ethyl) are one example, as are pi donors such as oxygen and nitrogen.

For example, adding a methyl group on butadiene will increase the reaction rate by a factor of 3 to more than 100, depending on the dienophile [ ref] .

Next up: Cyclic Dienes and Dienophiles

Many students struggle with drawing out the products of Diels-Alder reactions with cyclic dienes and dienophiles. I was planning to address that topic in this post, but it’s getting too long. So we’ll cover that next time.

Thanks to Tom Struble for assistance with this post.


Notes

[Note] For our purposes we’ll only discuss normal electron demand Diels Alder reactions, with an electron-rich diene and an electron-poor dienophile. However, there are examples of Diels-Alder reactions that proceed with electron-poor dienes and electron-rich dienophiles. These are known as inverse-electron demand Diels Alder reactions.

Note – These figures actually apply for cyclopentadiene, not butadiene, but the relative rates should be similar. For the experimental data see Carey and Sundberg A [page 641 on Google books] or direct from the literature, here. (German)

Appendix 1: What About Other Ring Sizes?

A Few  “Dumb” Questions About The Diels-Alder That Are Actually Good Questions

1. Is This Type of Reaction Confined To A “Diene” and a “Dienophile”,  or can it be used to make other sizes of rings too?

Great question. Up to this point we’ve been used to seeing highly charged nucleophiles and electrophiles.

The Diels-Alder is part of a family of reactions called “pericyclic reactions” where the two reaction components are relatively non-polar and do not generally go through charged intermediates such as carbocations

Specifically, the Diels-Alder reaction itself makes six-membered rings and only six-membered rings. A diene [4 pi-electron component] and a dienophile [2 pi-electron component] is required for the reaction to occur. For that reason the Diels-Alder is often called a [4+2] cycloaddition.

Are there other types of cycloadditions? Yes – although they aren’t nearly as common or important as the [4+2] cycloaddition.

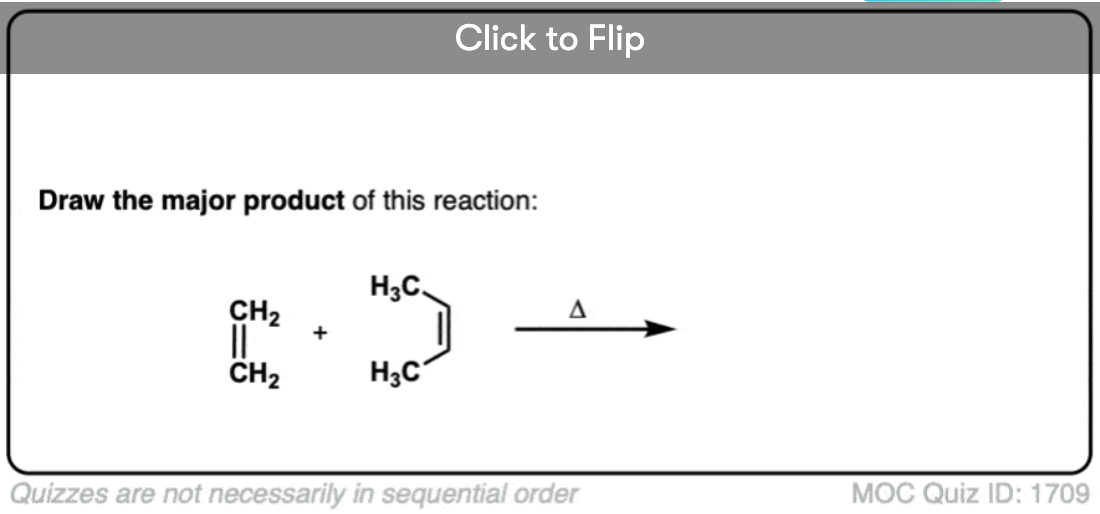

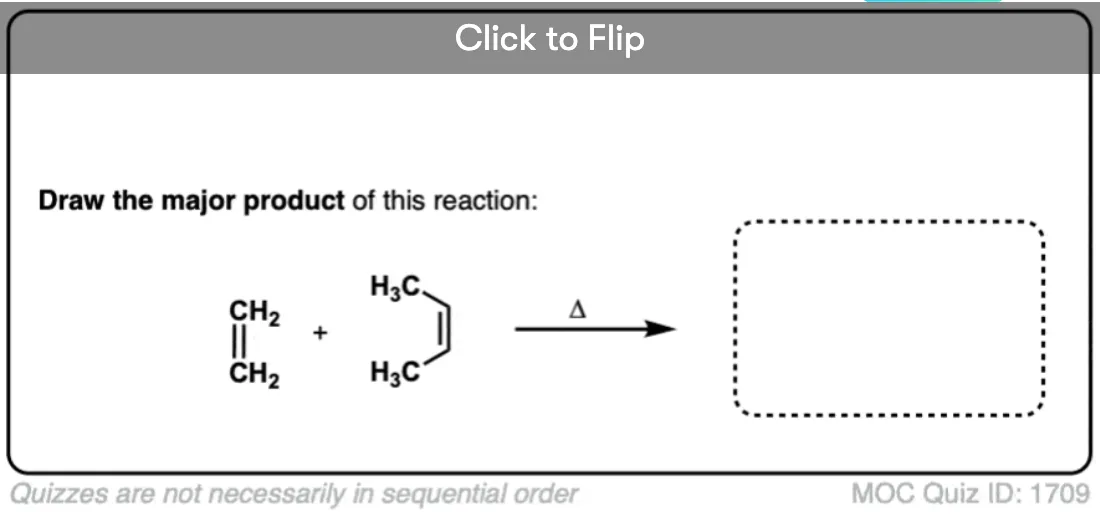

For example, you might wonder: what happens if there’s no diene?  Can two alkenes combine to make a four-membered ring?

Under the same conditions as the Diels-Alder (i.e. just with heat),  no.

in the diels alder reaction what happens if you try to combine two alkenes do you get cyclobutane no you dont

[We wrote a huge series of posts on the reactions of alkenes and you didn’t see this reaction. That’s for a good reason].

However, it is possible to get two alkenes to combine into a cyclobutane, if (and only if) strong ultraviolet (UV) light is applied.

here is an example of a 2 + 2 cycloaddition between an alkene and an enone there is no reaction without strong uv light

This is called a [2+2] cycloaddition.

Why is UV light required here but not for the Diels-Alder? Great question! It has to do with orbital symmetry, and we’ll get to that soon enough.

Along similar lines: what if there’s no dienophile? Can two dienes react?

In the absence of a dienophile, heating a diene under the same conditions does not give an eight membered ring (that would be a [4+4] cycloaddition, by the way).

What actually happens is that one diene combines with an alkene in a Diels-Alder reaction, forming a six-membered ring.

do two dienes combine to give a new eight membered ring no they dont you instead get a diels alder reaction forming but no cyclooctane

Other kinds of “higher-order” cycloadditions have been observed too, such as [6+4], [6+8], and even a [14+2] cycloaddition, but these are generally rare and quite contrived examples that pale in usefulness to the [4+2] case.

The point I’m trying to make here is that the combination of a diene + alkene giving a six-membered ring is particularly important and favoured.

2. Does The Dienophile Have To Be An Alkene?

The dienophile does not have to be an alkene specifically; the only requirement is that it contain a pi bond.  It can also be an alkyne, for example.  For example dimethylacetylene decarboxylate (DMAD) is an excellent dienophile, and after breakage of the C-C pi bond, an alkene remains. Even N=N pi bonds can participate in Diels-Alder reactions, so long as they are attached to electron poor groups, such as in diethylazodicarboxylate (DEAD). Yes, there is a reagent called DEAD.

Furthermore there are examples of C=O bonds participating in Diels-Alder reactions, although this gets into the territory of the inverse-electron demand Diels-Alder reaction, a topic we aren’t even close to discussing yet.

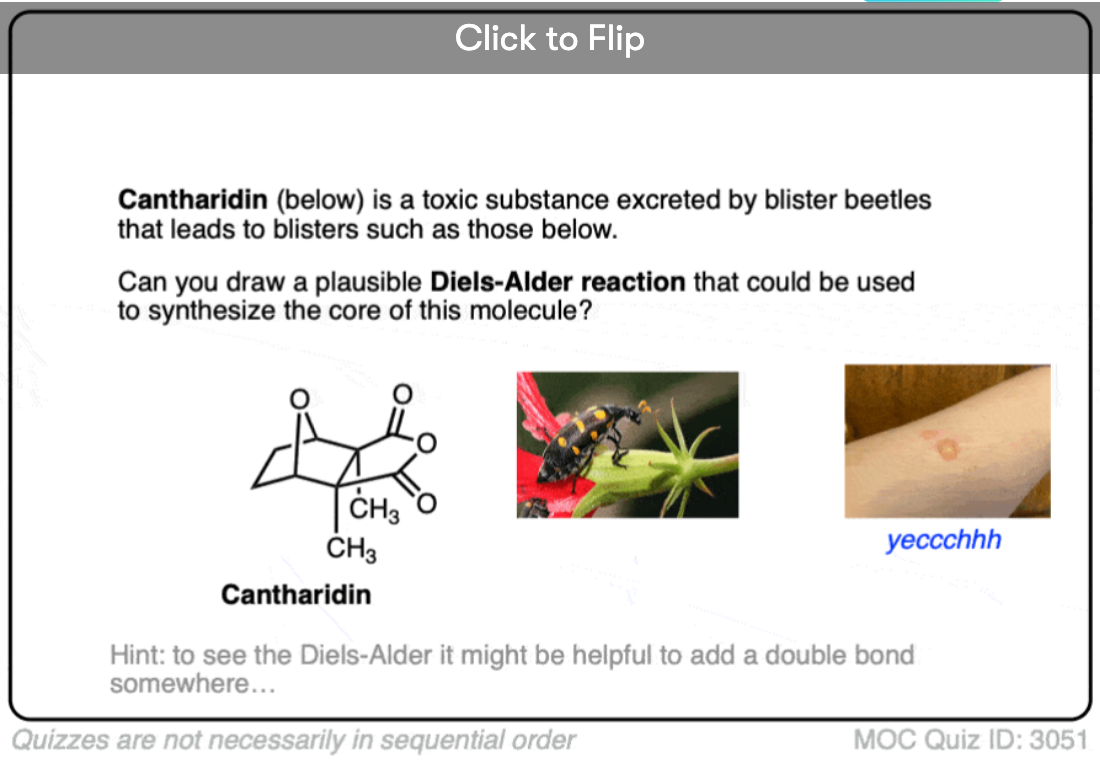

Appendix 2: Three Spectacular Examples Of The Diels-Alder Reaction

Advanced topic.

There are countless examples of the Diels-Alder reaction being used for the syntheses of natural products. I picked three below.

The examples will look complex to a beginner – and they are. However,  the key point I want to hammer home is that the pattern of bonds that form and break in all of these reactions is NO DIFFERENT than the pattern we see with good ol’ butadiene and ethylene.

Tetrodotoxin (Kishi, 1972)

It takes about three years of intense training to obtain a licence to prepare pufferfish (Fugu) in Japan. Why is that? Because the liver and other selected organs of the pufferfish contain the deadly nerve toxin tetrodotoxin, and it takes tremendous practice to learn how to prepare fillets without contaminating the meat.

Tetrodotoxin has a wonderfully complex structure. The group of Yoshito Kishi at Harvard University first synthesized tetrodotoxin back in 1972 using a Diels-Alder to set the stereochemistry in the core 6-membered ring.

classic example of diels alder reaction in the total synthesis of tetrodotoxin by kishi 1972 sets stereochemistry

Try and look past the complexity to focus on the bonds that form and break here: you should be able to see that they are the exact same as those that form and break in the reaction of butadiene with ethylene.

The importance of the Diels-Alder here is that it set the stereochemistry of the C-5 and C-6 carbons (labelled in red), and formed a concave  “cis-decalin” structure that allowed Kishi’s group to subsequently set the rest of the chiral centers in the molecule (7 total). This classic strategy, pioneered by Woodward, allowed for the synthesis of a dauntingly complex molecule at a time where there were very few methods for asymmetric synthesis.

You might wonder what the SnCl4 is for. That’s a Lewis acid that catalyzes the reaction between butadiene and the dienophile. Not only does Lewis acid catalysis make the reaction faster, but it also makes it more selective. Not a topic we’ll get into today.

Tetracycline (Myers and Charest, 2005)

Perhaps you’ve heard of the antibiotic tetracycline? The research group of Andrew G. Myers of Harvard University developed a platform for the synthesis of a diverse range of tetracycline antibiotics which relies on the Diels-Alder reaction.

classic example of diels alder reaction in forming tetracycline myers and charest

What makes the Diels-Alder so useful here? Two things. First, it sets the stereochemistry at C-5 (numbered in red – not IUPAC numbering). Secondly, and by far more important, is that the Diels-Alder allows one to join together two very complex fragments in a very predictable way.

Medicinal chemists commonly make a large number of different analogues of a promising drug candidate and test them under biological conditions to see which one performs the best. The beauty of the Diels-Alder strategy in the tetracycline synthesis is that it is convergent; one can make a complex diene and a complex dienophile and then bring them together at a late stage.

This strategy for tetracycline synthesis is the basis of a publicly traded company (Tetraphase) currently bringing treatments to the clinic.

 iso-Odoratin (Newhouse and Schuppe, 2017)

The Diels-Alder isn’t some musty old reaction that is confined to the back pages of textbooks. It’s very much a part of current, cutting-edge chemical research.  Just to demonstrate that this isn’t some reaction that’s buried in the past, here’s an example from January of this year, the synthesis of iso-odoratin (and other molecules) by the group of Tim Newhouse at Yale.

classic example of diels alder reaction in synthesis of iso odoratin by newhouse 2017

Note that as in all previous cases of the Diels-Alder, the pattern of  bonds that form and break are identical.

The diene in this case is extremely electron-rich, possessing both an oxygen and a nitrogen (strong pi donors both!) directly bonded to the pi system.

Exactly why C-4  bonds with C-5 and not C-4 with C-6 (the regioselectivity, in other words) is a great question. We’ll address this in due course. [See: Regioselectivity in the Diels-Alder Reaction]


(Advanced) References and Further Reading

This one reaction has spawned a massive amount of research due to its versatility. The papers listed here are representative, but barely scratch the surface of the work that has been done in this area.

  1. Synthesen in der hydroaromatischen Reihe
    Otto Diels and Kurt Alder
    Lieb. Ann. Chem. 1928, 460 (1), 98-122
    DOI: 10.1002/jlac.19284600106
    This reaction is named after its discovers, Diels and Alder, who received the Nobel Prize in Chemistry in 1950 for this work. In this paper, they claim their territory in applying their reaction in total synthesis, stating “We explicitly reserve for ourselves the application of the reaction developed by us to the solution of such problems”.
  2. The mechanism of the Diels-Alder reaction
    R. B. Woodward, Thomas J. Katz
    Tetrahedron 1959, 5 (1), 70-89
    DOI:
    10.1016/0040-4020(59)80072-7
    Prof. R. B. Woodward was a legendary figure in organic chemistry, and this paper describes various theories as to the mechanism of the Diels-Alder reaction.
  3. Diels-alder reactions with inverse electron demand. II. The reaction of benzamidine with π-deficient heteroaromatic compounds
    P. Figeys, A. Mathy
    Tet. Lett. 1981, 22 (15), 1393-1396
    DOI: 10.1016/S0040-4039(01)90330-2
    The normal Diels-Alder reaction proceeds best when the diene is electron-rich and the dienophile electron-poor. However, in certain cases, the opposite polarity is possible, and these reactions are known as inverse electron-demand Diels-Alder reactions.
  4. The Diels–Alder Reaction in Total Synthesis
    C. Nicolaou, Scott A. Snyder, Tamsyn Montagnon, Georgios Vassilikogiannakis
    Angew. Chem. Int. Ed. 2002, 41 (10), 1668-1698
    DOI:
    10.1002/1521-3773(20020517)41:10<1668::AID-ANIE1668>3.0.CO;2-Z
    Prof. K. C. Nicolaou (Rice) is a current leader in natural product total synthesis, and this review covers the applications of the Diels-Alder reaction in this area.
  5. Hydrophobic acceleration of Diels-Alder reactions
    Darryl C. Rideout and Ronald Breslow
    Journal of the American Chemical Society 1980, 102 (26), 7816-7817
    DOI:
    10.1021/ja00546a048
    This publication by Prof. Breslow (Columbia) is significant as it describes an unsual rate acceleration of the Diels-Alder reaction when carried out in water. This is ascribed to the hydrophobic effect, an entropic effect that forces the reactants closer together.
  6. Useful diene for the Diels-Alder reaction
    S. Danishefsky and T. Kitahara
    Journal of the American Chemical Society 1974, 96 (25), 7807-7808
    DOI:
    10.1021/ja00832a031
    This paper describes the synthesis and utility of a functionalized and reactive diene for Diels-Alder reactions. This diene is now commonly known as “Danishefsky’s diene” after its creator, Prof. S. Danishefsky (now at Columbia U.). [Worth noting that Danishefsky’s doctoral supervisor, Prof. Peter Yates, made an important advance in reporting Lewis acid catalysis of the Diels-Alder ]
  7. New Strategies for Organic Catalysis:  The First Highly Enantioselective Organocatalytic Diels−Alder Reaction
    Kateri A. Ahrendt, Christopher J. Borths, and David W. C. MacMillan
    Journal of the American Chemical Society 2000, 122 (17), 4243-4244
    DOI:
    10.1021/ja000092s
    Enantioselective Diels-Alder reactions are also possible and are an active area of research. This paper by Prof. Dave MacMillan (now at Princeton) shows how one can use organocatalysis to achieve an enantioselective Diels-Alder reaction via a chiral iminium ion intermediate.
  8. Conservation of orbital symmetry
    Roald Hoffmann and Robert B. Woodward
    Accounts of Chemical Research 1968, 1 (1), 17-22
    DOI:
    10.1021/ar50001a003
    This is an extremely important paper. Conservation of orbital symmetry allows one to predict the stereochemistry of pericyclic reactions (such as the Diels-Alder reaction). This paper is a great introduction to the topic by its creators and introduces relevant terms (suprafacial, antarafacial, synrotatory, conrotatory, etc.). Prof. Hoffmann received the Nobel Prize in Chemistry in 1981 for this work, and would undoubtedly have shared it with Prof. Woodward that year (which would have been Woodward’s second Nobel) if he had not passed away untimely the previous year.
  9. ENANTIOSELECTIVE, CATALYTIC DIELS-ALDER REACTION: (1S-endo)-3-(BICYCLO[2.2.1]HEPT-5-EN-2-YLCARBONYL)-2-OXAZOLIDINONE
    S. Pikul and E. J. Corey
    Org. Synth. 1993, 71, 30
    DOI: 10.15227/orgsyn.071.0030
    This procedure by Nobel Laureate Prof. E. J. Corey (Harvard) demonstrates an asymmetric Diels-Alder reaction by means of a chiral Al catalyst.

Comments

Comment section

16 thoughts on “The Diels-Alder Reaction

  1. I have another question.

    If we react butadiene an ethene, we get the cyclohexene. Could the newly formed double bond act as a dienophile, which could react again with a diene? (and again to get a kind of polymerization)

    I know that the dienophile should preferably have a EWG, but you stated an example where the ethene has a methylgroup attached, so it is not that far away.

    Best regards,
    David

  2. Dear James,

    Concerning the arrow-pushing mechanism, why is the arrow drawn from the dienophile to the diene? I was taught that arrows represent the flow of electrons. If the dienophile is electron-poor and the diene is electron-rich, shouldn’t the arrow be drawn the other way?

    1. Nevermind, James. I’ve realized the Diels-Alder reaction is a one-step, concerted mechanism and as you mentioned, the electrons can move clockwise or counterclockwise.

  3. With regards to the stereochemistry of the diene, you wrote that the diene must be in sigma-cis conformation in order react with the dienophile. What effect does ring size have on the reactivity of a cyclic diene locked in sigma-trans conformation?

    For example, is the [4+2] cycloaddition between 3-methylenecyclohept-1-ene and a dienophile symmetry-forbidden or allowed?

  4. Under the second section, you state that the diene must be in s-cis conformation otherwise a Diels-Alder reaction will not occur. Then, you show 1,3-butadiene in trans conformation and say no reaction happens. However, can’t 1,3-butadiene in trans rearrange to cis and undergo a reaction? The diene is not cyclic so it is not locked in trans postition.

  5. Is the 6+4 reaction between tropone and cyclopentadiene to give a nine membered ring not a Diels Alder reaction.. or are Cookson, Drake, Hudec and Morrison incorrect?

    1. Woodward Hoffman had predicted the 6+4 reaction prior to. When did it become a ‘higher order’ reaction. Mere words.

  6. I just wanted to thank you. I’m in Orgo I. I read all assigned chapters religiously, attend all lectures, do all the practice questions in the textbook, but still struggle to understand what is being explained to me. I come to your site, and it’s as if you speak my language. I get it. I totally get it. I owe you, my passing grade. Thank you so much!

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
