Reagent Friday: Chromic Acid, H2CrO4
Last updated: January 29th, 2020 |
H2CrO4 (Chromic Acid, a.k.a. the protonated form of K2Cr2O7 / Na2Cr2O7 / K2CrO4 / Na2CrO4) As A Reagent In Organic Chemistry
In a blatant plug for the Reagent Guide, each Friday for the forseeable future here I will profile a different reagent that is commonly encountered in Org 1/ Org 2.
Chromic Acid (H2CrO4) Is Equivalent To K2Cr2O7 + H2SO4 (Among Other Combinations)
Of all the reagents I encounter as a tutor in organic chemistry, I’m not sure there’s one that makes me want to rip my hair out more than chromic acid. I don’t have a lot of hair so I don’t say that lightly.
The thing is not that it is a particularly tricky reagent. It is, in fact, quite straightforward, once deciphered.
What makes it tricky is the vast number of different ways that textbooks (and instructors) show it being used in reactions.
Here’s the thing: Chromic acid, H2CrO4, is a strong acid and a reagent for oxidizing alcohols to ketones and carboxylic acids. For fairly mundane reasons owing primarily to safety and convenience, chromic acid tends to be made in the reaction vessel as needed (through addition of acid to a source of chromium), rather than being dispensed from a bottle.
And that’s where the trouble begins. Choosing a source of chromium to make H2CrO4 from is a lot like choosing a favorite brand of bottled water. Beyond the packaging, they’re pretty much all the same. Depending on which textbook or instructor you have, however, you might see several different ways to do this, and it can be very confusing.
The key point is that Na2CrO4 (sodium chromate), Na2Cr2O7 (sodium dichromate), K2CrO4 (potassium chromate), K2Cr2O7 (potassium dichromate), and CrO3 (chromium trioxide) are all alike in one crucial manner: when they are combined with aqueous acid, each of them forms H2CrO4, and ultimately it’s H2CrO4 which does the important chemistry. Unfortunately I rarely see this point explained in textbooks. I remember this causing some confusion for me when I took the course. The K or Na ions present are just spectators.
H2CrO4 As A Reagent For The Oxidation Of Alcohols

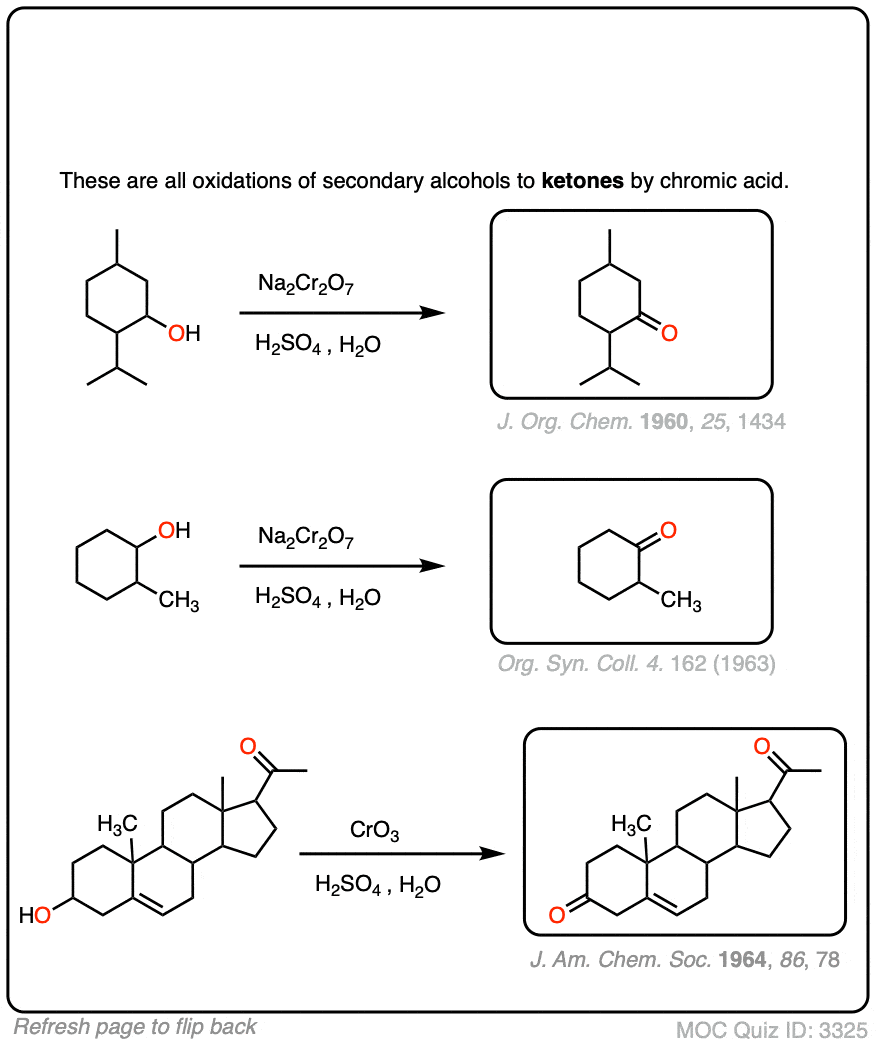

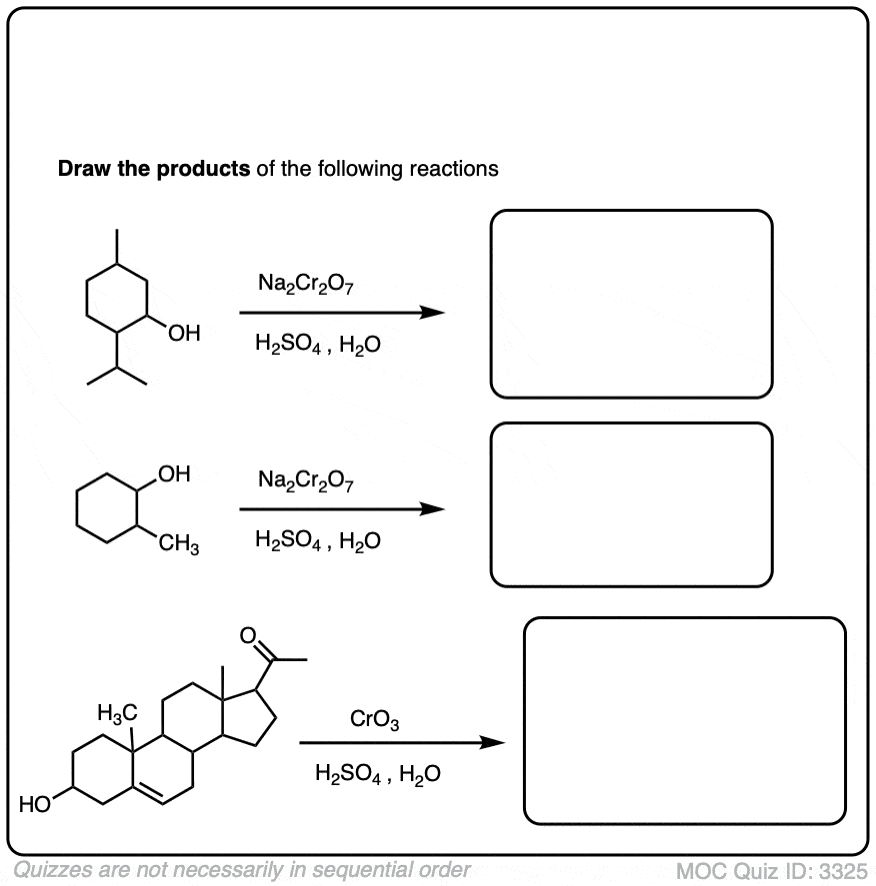

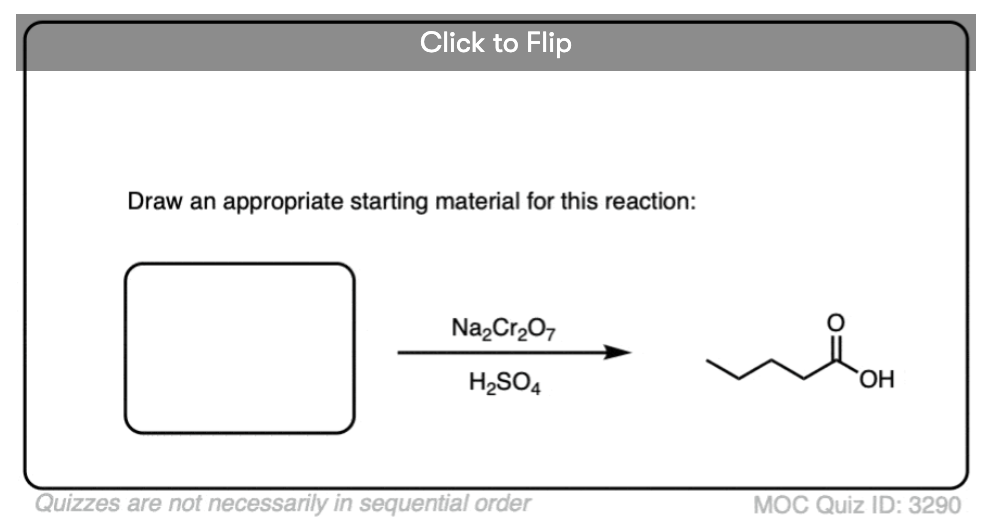

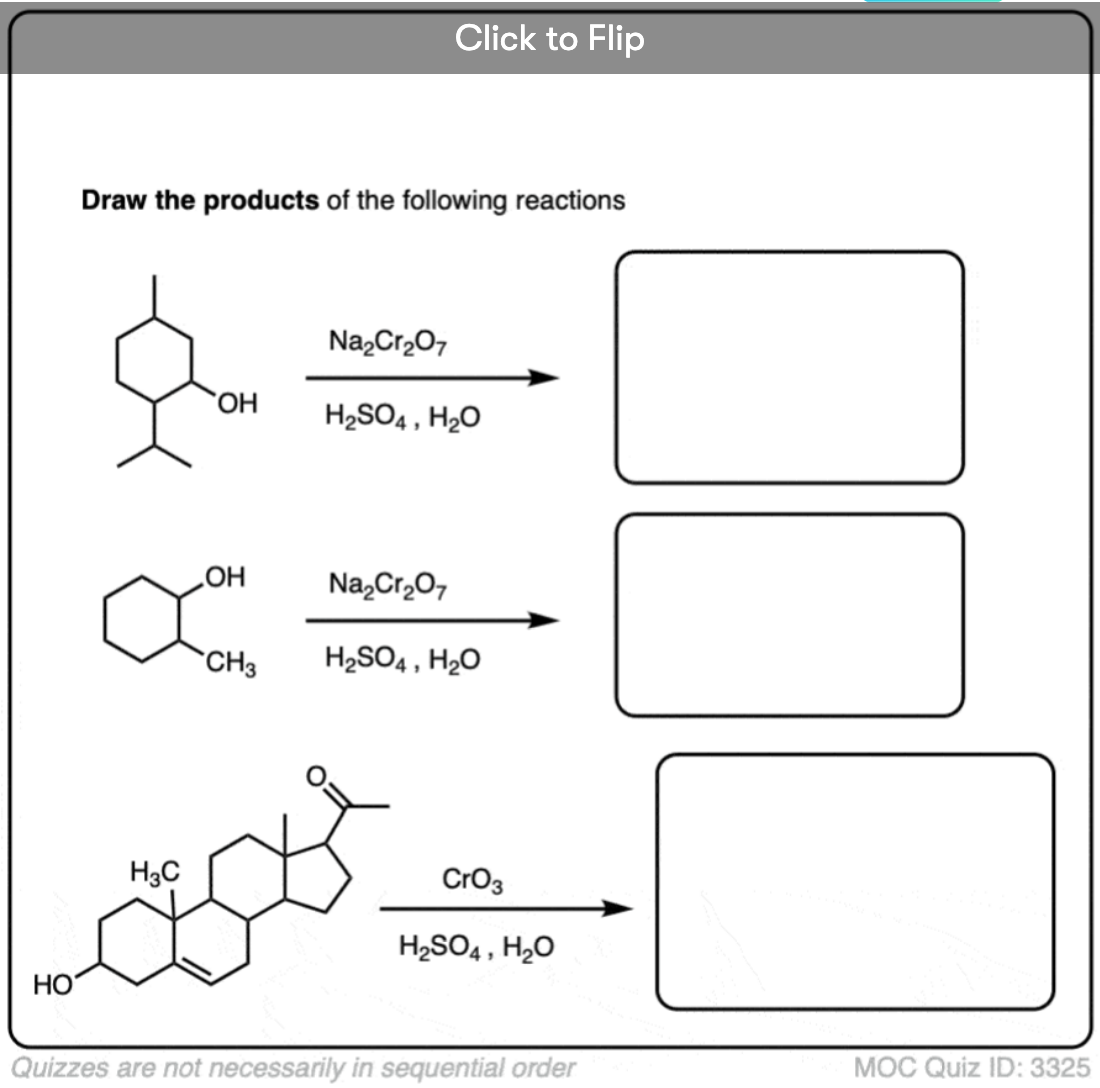

Once H2CrO4 is formed, its reactions are pretty straightforward: it converts primary alcohols (and aldehydes) to carboxylic acids and secondary alcohols to ketones.
Oxidation Of Primary Alcohols To Carboxylic Acids With Chromic Acid: How It Works
It does this through addition of the alcohol oxygen to chromium, which makes it a good leaving group; a base (water being the most likely culprit) can then remove a proton from the carbon, forming a new π bond and breaking the O-Cr bond.
I wish I could tell you that navigating this confusion is ultimately rewarding due to the vast usefulness of H2CrO4 as a reagent. In fact, due to its high toxicity, chromic acid tends to find very little use in the organic chemistry laboratory outside of undergrad labs. There are far more useful reagents out there for performing these transformations.
P.S. You can read about the chemistry of chromic acid and more than 80 other reagents in undergraduate organic chemistry in the organic chemistry reagent guide, available here as a downloadable PDF.
(Advanced) References and Further Reading
The main oxidizing agents used for this transformation are Cr(VI) and Mn(VII), as shown below. The first two references use KMnO4.
- Synthesis of a model depsipeptide segment of Luzopeptins (BBM 928), potent antitumor and antiretroviral antibiotics
Marco A. Ciufolini and Shankar Swaminathan
Tetrahedron Letters Volume 30, Issue 23, 1989, Pages 3027-3028
Step f in the synthesis (Scheme 1) is an oxidation of a primary alcohol to carboxylic acid using KMnO4.
- Stereocontrolled addition to a penaldic acid equivalent: an asymmetric of -β-hydroxy-L-glutamic acid
Tetrahedron Letters Volume 25, Issue 51, 1984, 5855-5858
The final step (g, 6 -> 7) in the synthesis in this paper is an oxidation of a primary alcohol to a carboxylic acid using KMnO4.The Jones oxidation, which uses chromic acid (CrO3 in H2SO4) is a common method for the oxidation of primary alcohols to carboxylic acids. The drawback is of course the production of stoichiometric amounts of chromium waste.
- Researches on acetylenic compounds. Part XIV. A study of the reactions of the readily available ethynyl-ethylenic alchohol, pent-2-en-4-yn-1-ol
Sir Ian Heilbron, E. R. H. Jones and F. Sondheimer
J. Chem. Soc., 1947, 1586-1590
- An Improved Procedure for the Oxidation of Alkynols to Alkynoic Acids
C. Holland and N. W. Gilman
Synth. Commun. 1974, 4, 203-210
- Useful procedures for the oxidation of alcohols involving pyridinium dichromate in aprotic media
E.J. Corey, Greg Schmidt
Tetrahedron Letters Volume 20, Issue 5, 1979, 399-402
Nobel Laureate Prof. E. J. Corey (Harvard) shows that PDC (pyridinium dichromate) in DMF can be used for the oxidation of primary alcohols to carboxylic acids.
